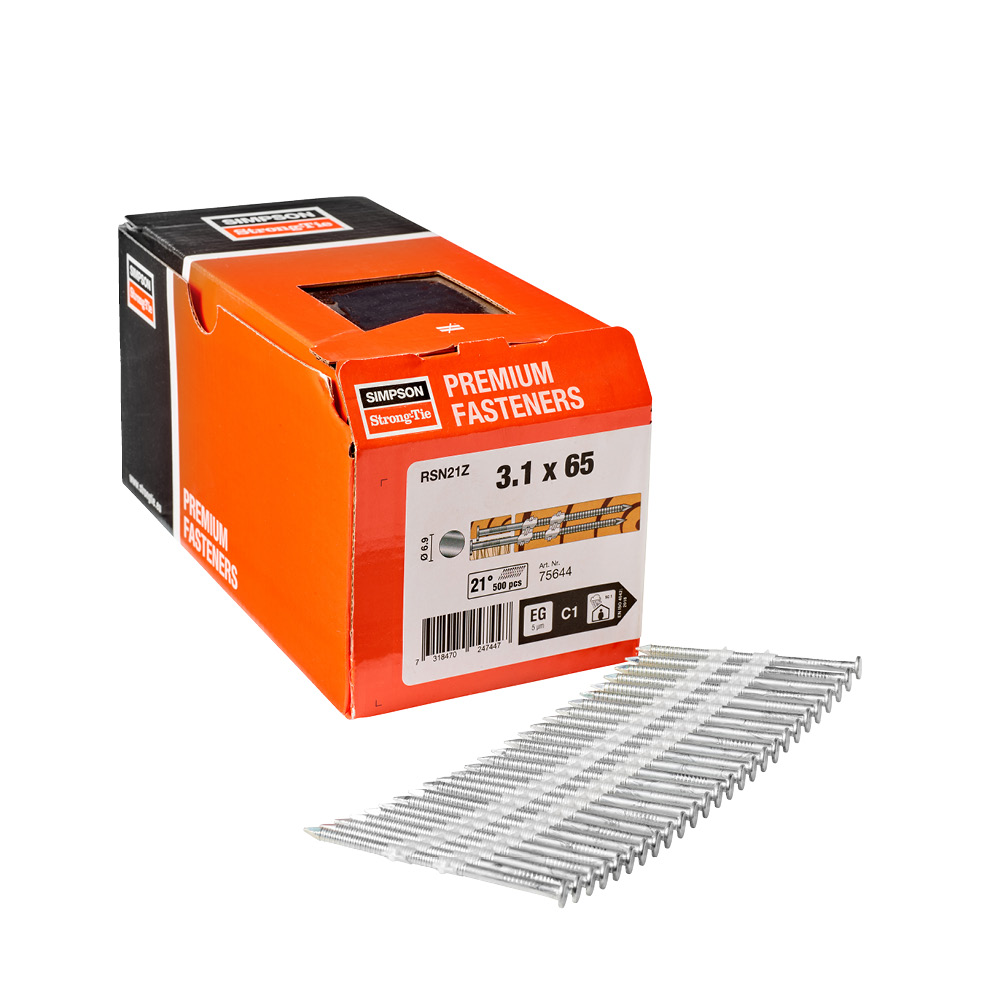

RSN21Z

21° Stavspiker, Plastbåndet

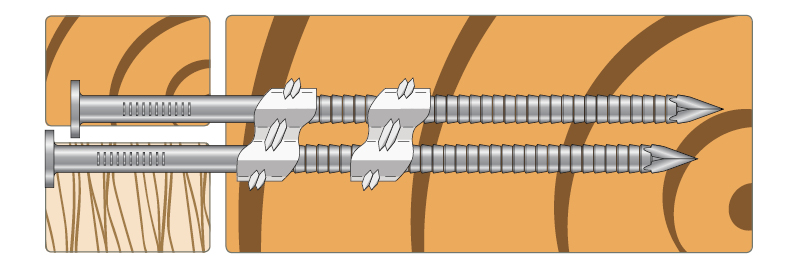

Stavspiker til generell spikring som: Reisverk, underpanel, utlekting, sløyfer etc.

CE-merket

Anvendelsesklasse 1

Elgalvanisert stål

Indoor

Tekniske data

Art. nr.	Item code	NOBB nr.	Fastener dimensions [mm]						Qty/box
Art. nr.	Item code	NOBB nr.	d	l	d_h	l_g	t_fix	bit	Qty/box
RSN21Z3.1X65	75644	55839537	3.1	64.5	6.9	41	40.2	-	500

Art. nr.	Product characteristic properties
Art. nr.	Characteristic Yield Moment – M_y,k [M_y.k] [Nm]	Characteristic withdrawal parameter - f_ax,k,90° [f_ax.k.90°] [N/mm²]	Characteristic head pull-through parameter - f_head,k [f_head.k] [N/mm²]	Characteristic tensile capacity - f_tens,k [f_tens.k] [kN]	Characteristic torsional strength - f_tor,k [f_tor.k] [Nm]	Torsonial ratio
RSN21Z3.1X65	4.6	8.3	18.1	3.8	-	-
