BSNN-Z

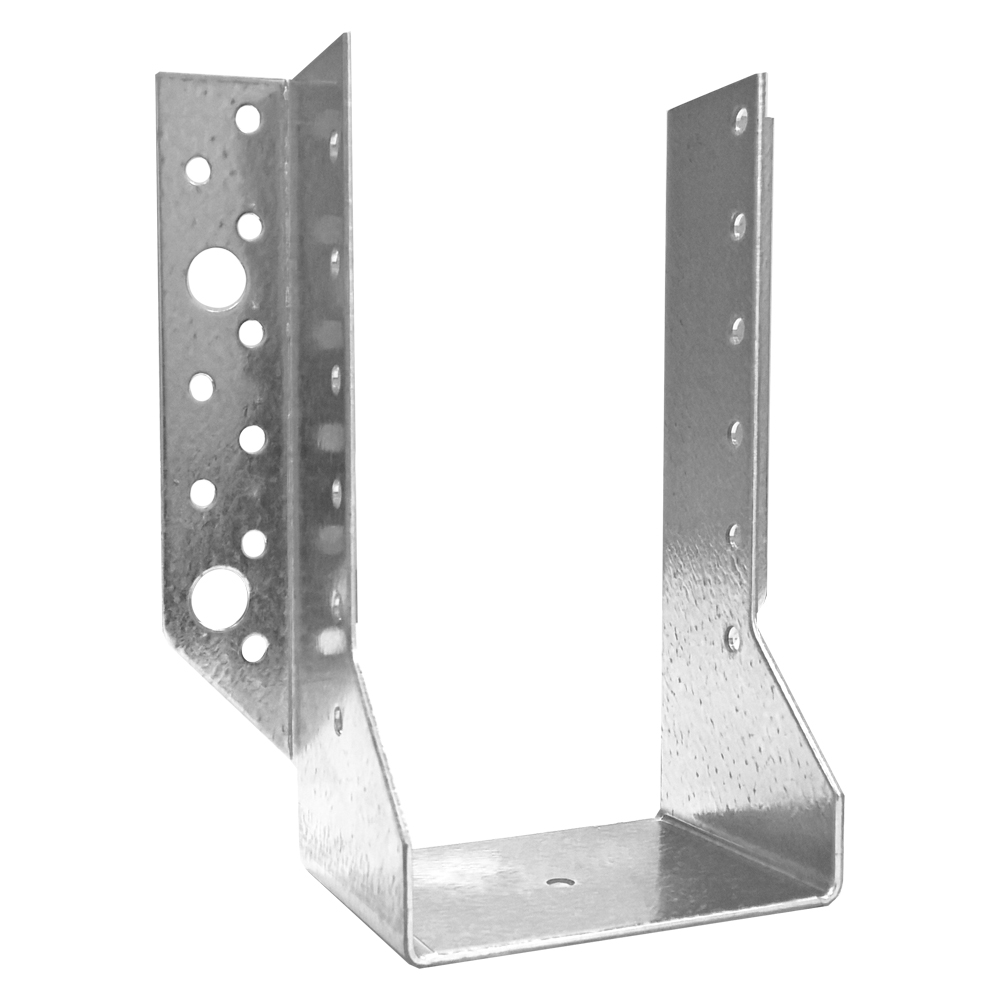

Bjelkesko ZPRO
Bjelkesko brukes til samling av sekundærbjelker til hovedbjelker eller stolper.
ZPRO-belegg er et unikt belegg – tilsvarende et sinklag på 55 µm
CE-merket
Avtalegrunnlag
Anvendelsesklasse 3
Outdoor
ZPRO
Produktinformasjon
Bilder
Egenskaper
Applikasjoner
Tekniske data
Dimensjoner
Product dimensions
| Art. nr. | NOBB nr, | Joist Dimensions [mm] | Product dimensions [mm] | Header holes | Joist holes | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Width | Height | A | B | C | D | F | t | Ø5 [mm] | Ø11.5 [mm] | Ø5 [mm] | ||||
| min | max | min | max | |||||||||||
| BSNN48/91Z | 57071000 | 46 | 48 | 101 | 136 | 48 | 91 | 60 | 27 | 63 | 2 | 8 | 2 | 6 |
| BSNN48/136Z | 57071015 | 46 | 48 | 146 | 204 | 48 | 136 | 60 | 27 | 63 | 2 | 16 | 2 | 10 |
| BSNN48/166Z | 57071026 | 46 | 48 | 176 | 249 | 48 | 166 | 60 | 27 | 63 | 2 | 18 | 4 | 12 |
Array

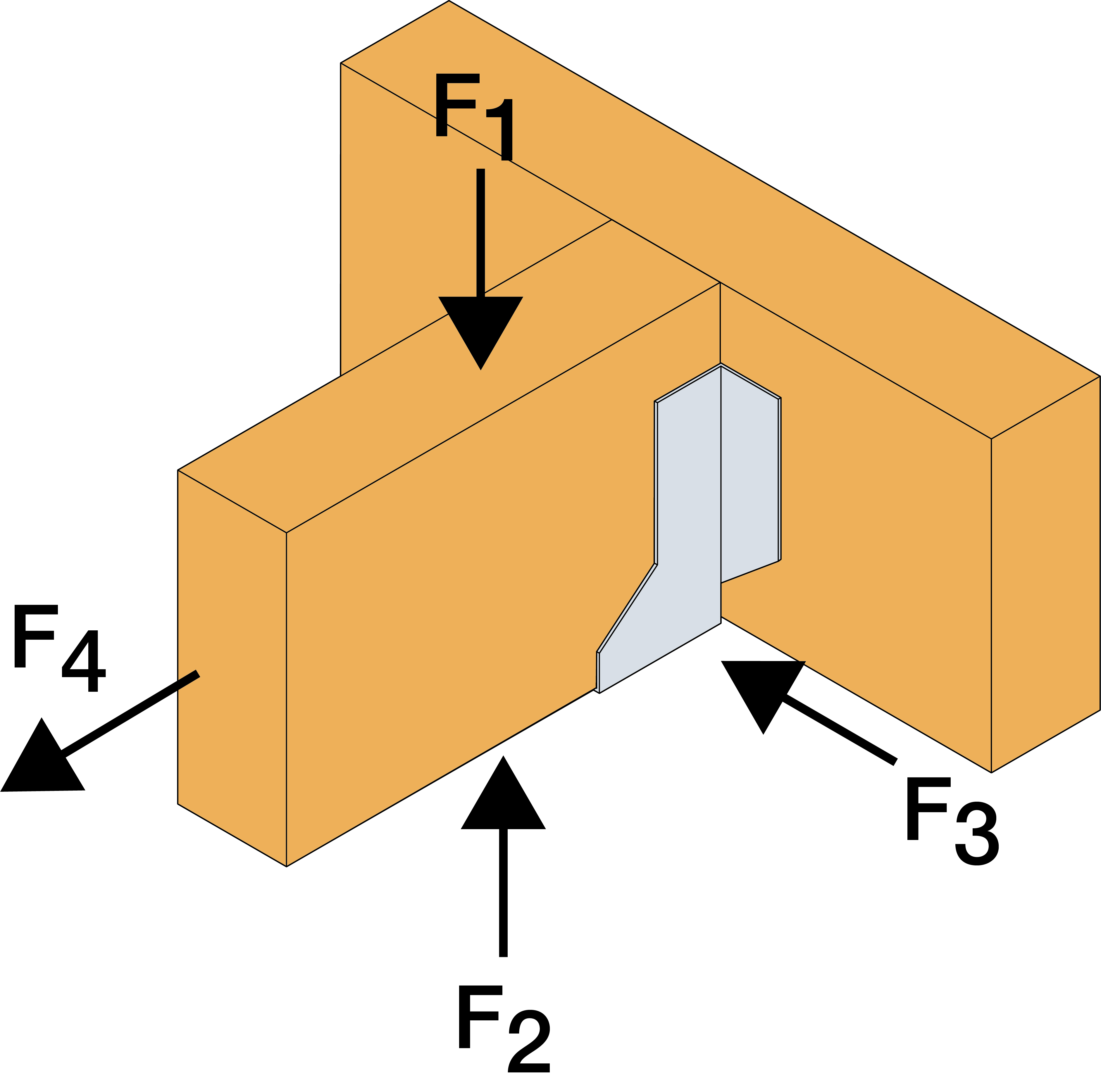

Product capacities - Timber to timber - full nailing
| Art. nr. | Product capacities - Timber to timber - Full nailing | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fasteners | Characteristic capacities - Timber C24 [kN] | |||||||||||||
| Header | Joist | R1.k | R2.k | R3.k | R4.k | |||||||||
| Qty | Qty | CNA 4.0x35 | CNA 4.0x40 | CSA 5.0x40 | CNA 4.0x35 | CNA 4.0x40 | CSA 5.0x40 | CNA 4.0x35 | CNA 4.0x40 | CSA 5.0x40 | CNA 4.0x35 | CNA 4.0x40 | CSA 5.0x40 | |
| BSNN48/91Z | 8 | 6 | 7.1 | 8.4 | 15.9 | 5 | 5 | 5 | 3.4 | 3.9 | 9.5 | 3.7 | 4.4 | 11.5 |
| BSNN48/136Z | 16 | 10 | 16.9 | 19.7 | 27 | 7 | 7 | 7 | 6.7 | 7.7 | 17.3 | 6.1 | 7.4 | 19.1 |
| BSNN48/166Z | 18 | 12 | 21.9 | 25.2 | 31.5 | 7.9 | 7.9 | 7.9 | 7.8 | 9 | 20.4 | 7.3 | 8.9 | 23 |
The uplift capacities R2.k are determine for a joist with a height of 4/3x B (B = height of BSNN). Also for connection with partial nailing.
For smaller sizes may it be possible to determine a higher capacity according to the ETA.
Combined load:
Product capacities - Timber to timber - Partial nailing
| Art. nr. | Product capacities - Timber to timber - Partial nailing | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fasteners | Characteristic capacities - Timber C24 [kN] | |||||||||||||
| Header | Joist | R1.k | R2.k | R3.k | R4.k | |||||||||
| Qty | Qty | CNA 4.0x35 | CNA 4.0x40 | CSA 5.0x40 | CNA 4.0x35 | CNA 4.0x40 | CSA 5.0x40 | CNA 4.0x35 | CNA 4.0x40 | CSA 5.0x40 | CNA 4.0x35 | CNA 4.0x40 | CSA 5.0x40 | |
| BSNN48/91Z | 6 | 3 | 6.3 | 7.4 | 11.3 | 3.8 | 4.5 | 5 | 1.3 | 1.4 | 1.7 | 2.8 | 3.1 | 5.7 |
| BSNN48/136Z | 10 | 6 | 11.4 | 13.2 | 18 | 7 | 7 | 7 | 2.4 | 2.7 | 3.3 | 6.1 | 7.4 | 11.5 |
| BSNN48/166Z | 12 | 6 | 13.3 | 14.6 | 18 | 7.9 | 7.9 | 7.9 | 2.9 | 3.2 | 3.9 | 7.3 | 8.9 | 11.5 |
Combined load:
