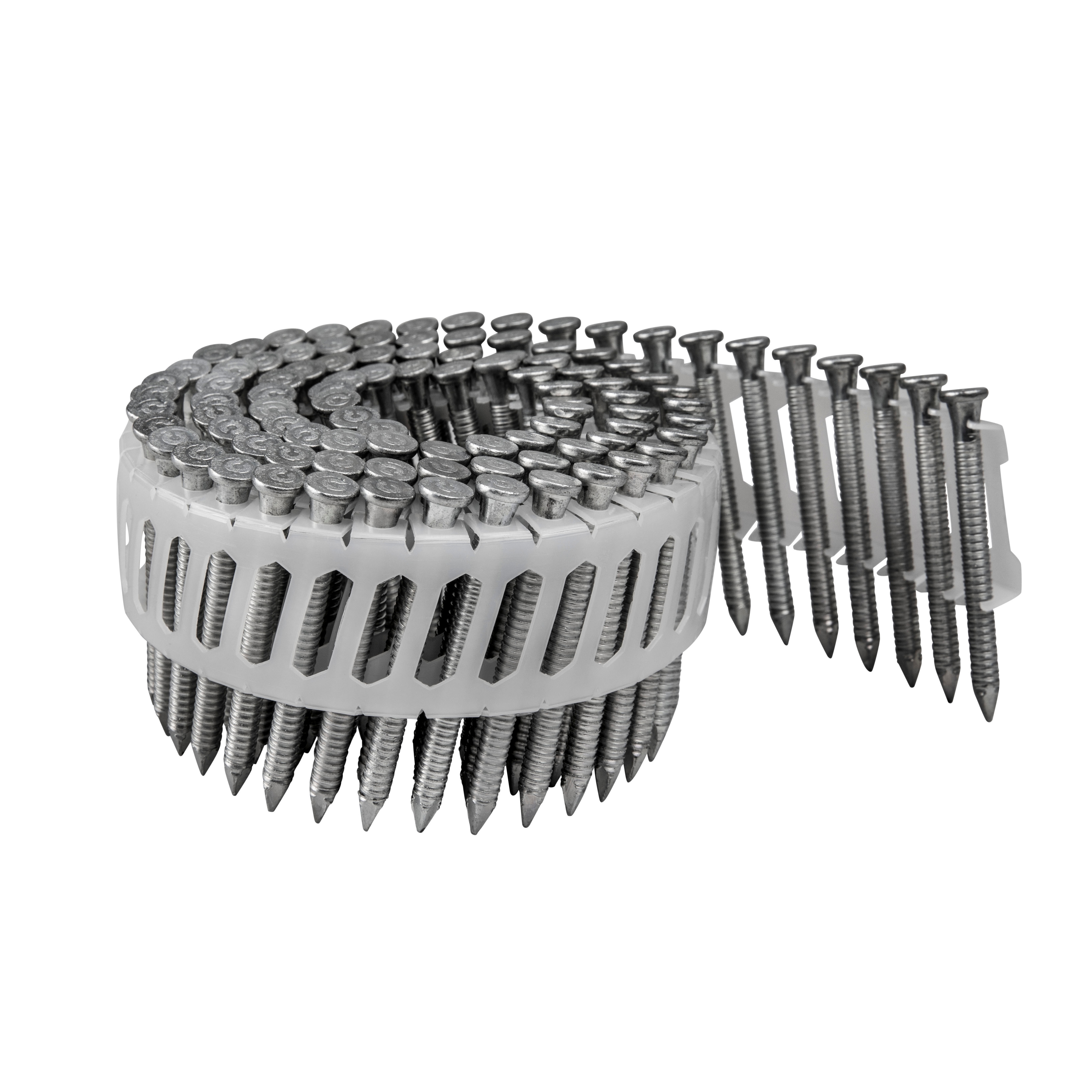

CNAC15-G

Koblingsspiker 15-16° plastspiral – rund hode, ring skaft HDG

Hot dip galvanised plastic coil collated CNA connector nails fit in most common nail guns on the market with a angle of the nail of 15-16°.

CE-merket

Avtalegrunnlag

Anvendelsesklasse 3

Outdoor

Hot Dip Galvanized

Discontinued Products

Variant Status Details

There are variants of this product family which have been discontinued and are out of production.

Art. nr.	Item Nr.	DB nr.	Fastener dimensions					Antall per spole	Qty per box	Vekt [kg]
Art. nr.	Item Nr.	DB nr.	d	l	lg	d_h	h_t	Antall per spole	Qty per box	Vekt [kg]
CNAC15G4.0X40	76142	2124154	4	40	25	7	1.5	100	1200	0.005
CNAC15G4.0X50	76143	2124155		50	35	7	1.5	100	1200	0.006
CNAC15G4.0X60	76144	2124156		60	45	7	1.5	100	1200	0.007

Art. nr.	Characteristic capacities - Timber C24 acc to ETA-04/0013 [kN]
Art. nr.	R_ax.k	R_lat.k
CNAC15G4.0X40	0.7	1.9
CNAC15G4.0X50	1	2.2
CNAC15G4.0X60	1.2	2.4

Capacities are for 2mm thick steel plates and Grade C24 timber. Please refer to ETA-04/0013 for capacities of other thickness and timber grades
