ARA4W

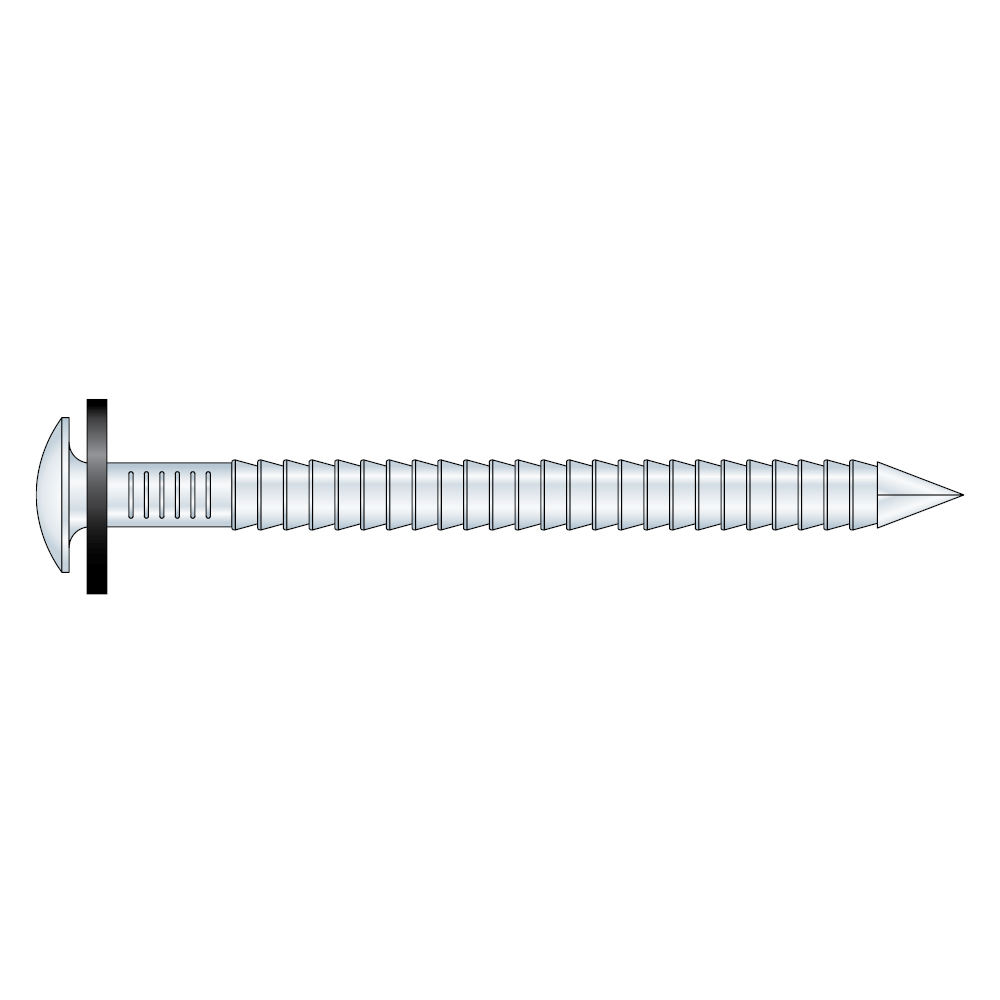

Ring Shank Wood to Wood Nail Washer - Rustfritt stål (A4)

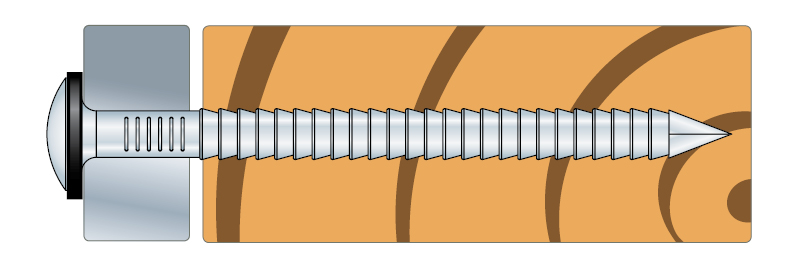

This ring shank nail with its low oval head and ring shank is used to fix timber components to wood, where high pull-out strength is required. Stainless A4 can withstand all weather conditions and also deal with aggressive environments. The washer prevents moisture getting into the nail hole.
Ny
EPD
Anvendelsesklasse 3
Severe
A4 rustfri syrefast
Produktinformasjon
Bilder
Tekniske data
Dimensjoner
Dimensjoner
| Referanse | Fasteners dimensjoner | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | annet | produktdimensjoner[mm] | ||||||||||
| DB nr. | NOB nr. | antall per eske | vekt[kg] | D[mm] | L[mm] | dh[mm] | Ah[mm] | ht[mm] | lg[mm] | lp[mm] | ||
| ARA4W4.0X35* | 74228 | 1950557 | 53292941 | 250.0 | 0.004 | 4 | 35 | 9.8 | 75.4 | 2 | 24.5 | 5.5 |
* not CE marked
