SDW

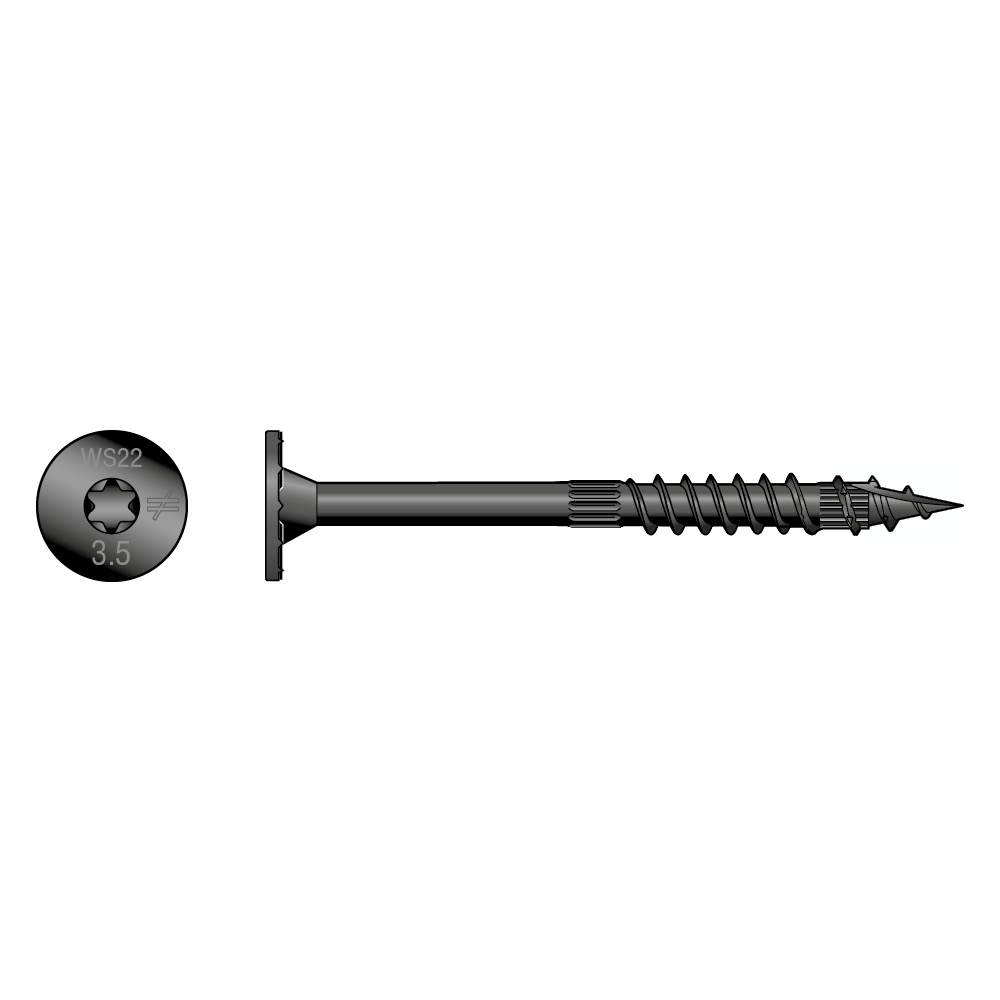

Konstruksjonsskrue, skivehode

SDW er en skrue for innendørs bruk. Egnet til bruk ved sammenføyning av f.eks. dobbelsperr, hvor man kun har tilgang fra én side. Det store hodet fjerner behovet for underlags skive.

Teknisk dataark

CE-merket

Anvendelsesklasse 2

Indoor

Black finish

EPD

Fastener Designer

Produktinformasjon

Bilder

Egenskaper

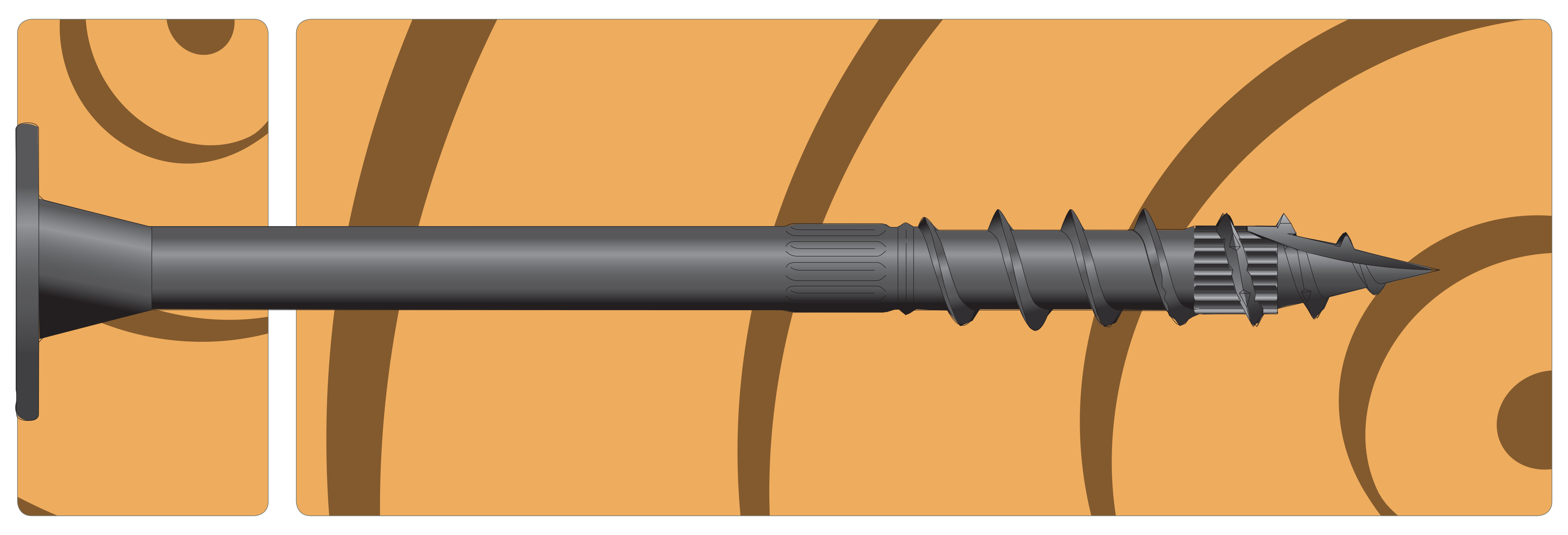

Materiale

Stålkvalitet:
Kulstof stål
Overflade:
Black E-coat™

Fordeler

Har helt flat hoved som muliggør at næste elementer kan skubbes helt tæt
CE godkendt

Applikasjoner

Bruksområder

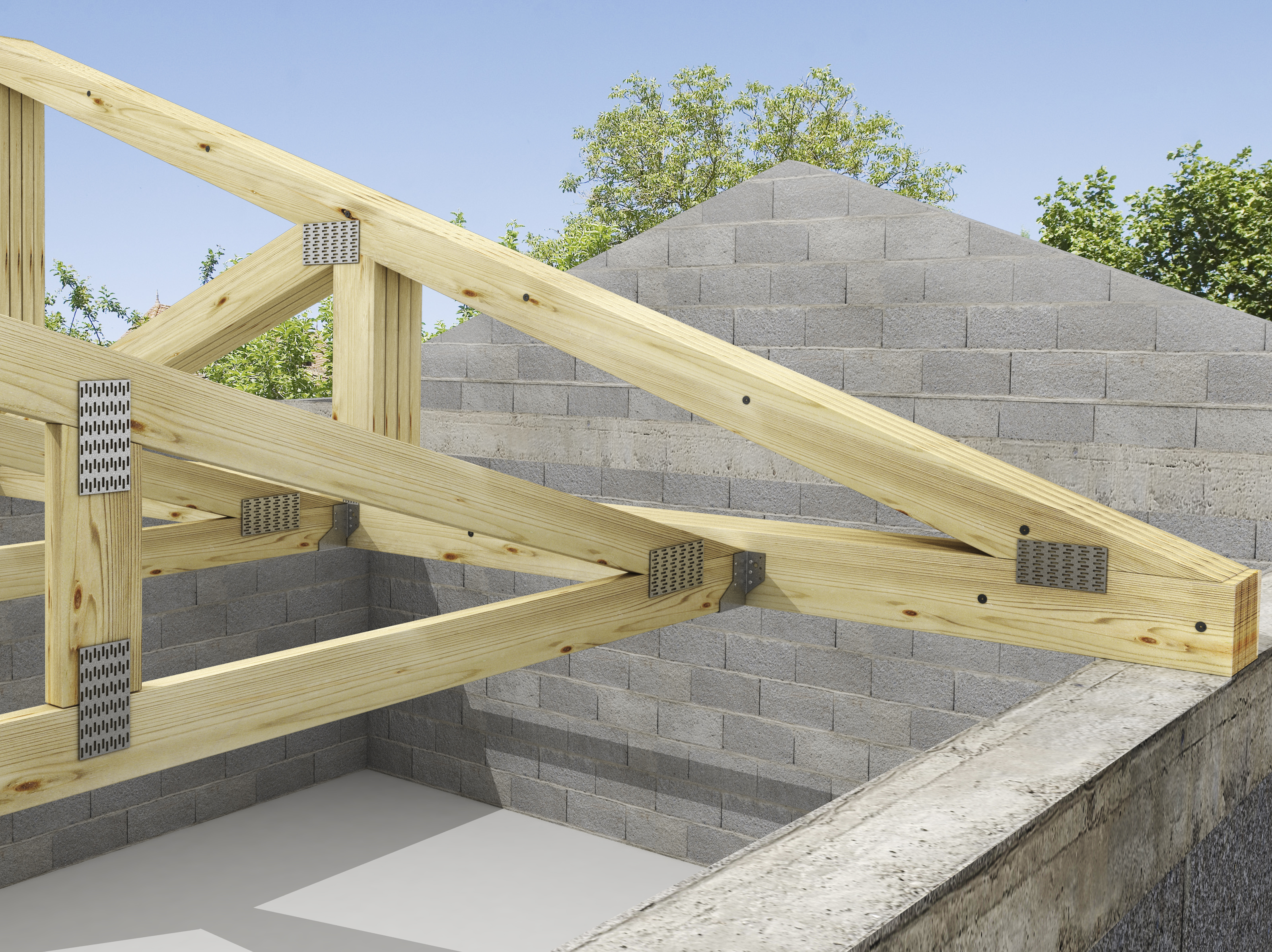

Til samling af dobbeltspær eller flere
Specielt egnet til spær

Tekniske data

Dimensjoner

Product Dimensions

Art. nr.	DB nr.	Dimensjoner [mm]					Driver Bit	Box Quantity	NOBB nr.	Vekt [kg]
Art. nr.	DB nr.	L	l_g	d₁	d	d_h	Driver Bit	Box Quantity	NOBB nr.	Vekt [kg]
SDW22258-R50E	2054434	66	36	5.6	8	19	T-40	50	-	0.018
SDW22300-R50E	2054441	76	37		8	19	T-40	50	-	0.02
SDW22338-R50E	1865763	86	40		8	19	T-40	50	-	0.021
SDW22438-R50E	2054444	111	37		8	19	T-40	50	-	0.025
SDW22458-R50E	2054457	117	37		8	19	T-40	50	-	0.028
SDW22500-R50E	2054467	127	40		8	19	T-40	50	-	0.03
SDW22600-R50E	2054551	152	37		8	19	T-40	50	-	0.034
SDW22638-R50E	2054554	162	37		8	19	T-40	50	-	0.037
SDW22634-R50E	2054555	172	40		8	19	T-40	50	-	0.038

Structural Parameters - hEN14592

Art. nr.	Boyningsstyrke - M_y,k [M_y.k] [Nm]	Karakteristisk uttrekks parameter - f_ax,k,90° [f_ax.k.90°] [N/mm²]	Karakteristisk hovdegjennomtrekningsparameter - f_head,k [f_head.k] [N/mm²]	Karakteristisk trekkstyrke - f_tens,k [f_tens.k] [kN]	Karakteristisk torsjonsstyrke - f_tor,k [f_tor.k] [Nm]	Vridningsforhold
SDW22258-R50E	17.4	13.2	21.4	21.4	24.2	4.5
SDW22300-R50E	17.4	13.2	21.4	21.4	24.2	4.5
SDW22338-R50E	17.4	13.2	21.4	21.4	24.2	4.5
SDW22438-R50E	17.4	13.2	21.4	21.4	24.2	4.5
SDW22458-R50E	17.4	13.2	21.4	21.4	24.2	4.5
SDW22500-R50E	17.4	13.2	21.4	21.4	24.2	4.5
SDW22600-R50E	17.4	13.2	21.4	21.4	24.2	4.5
SDW22638-R50E	17.4	13.2	21.4	21.4	24.2	4.5
SDW22634-R50E	17.4	13.2	21.4	21.4	24.2	4.5

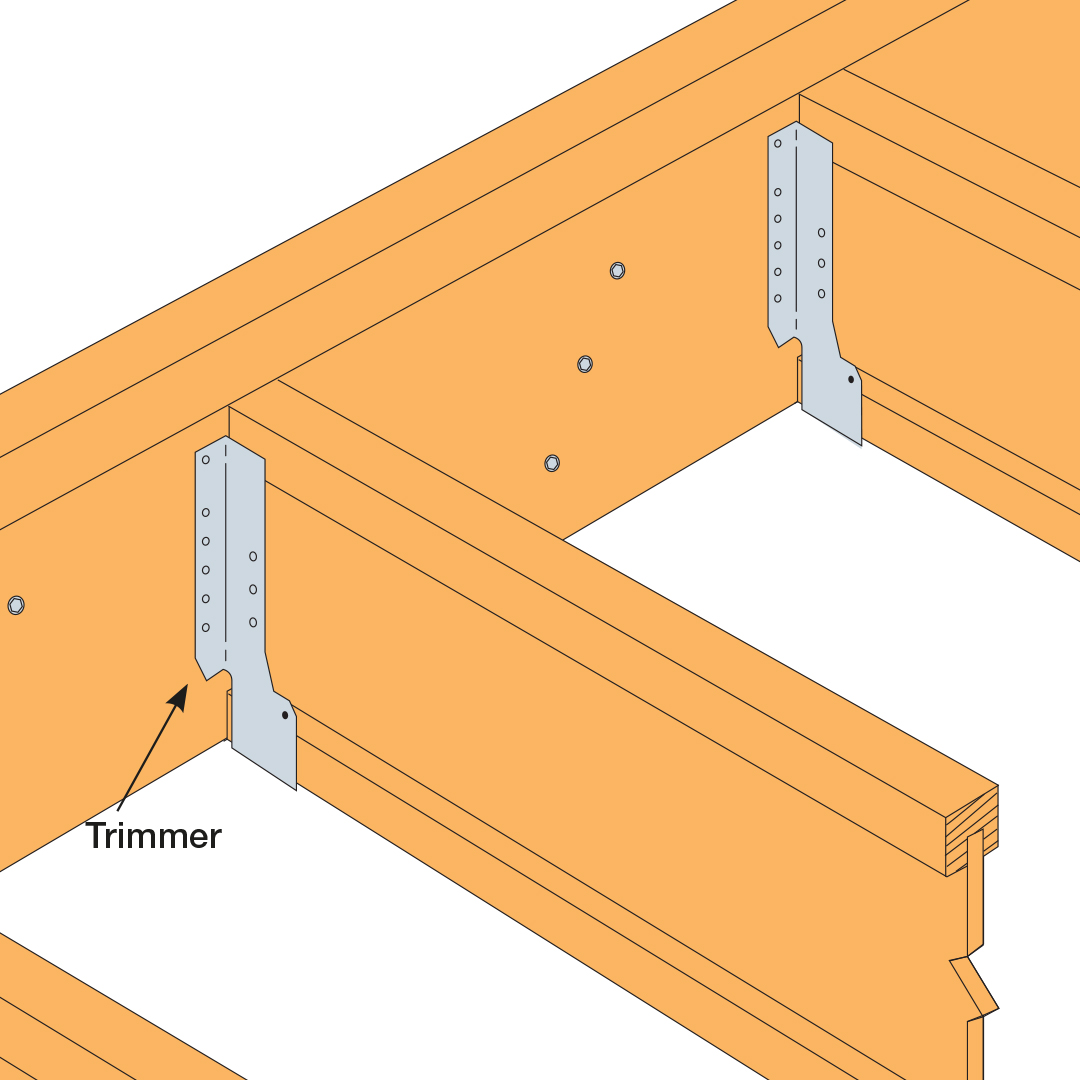

Tilkoblingsdetaljer for en Multiply Trimmer (UDL) – 2-lags

Art. nr.	Skrue SWL [N]	Sikker arbeidsbelastning Maks UDL⁽¹⁾ [KN/m]			Screw Characteristic Load	Karakteristiske belastninger Maksimal UDL ⁽¹⁾ [kN/m]
Art. nr.	SCL⁽²⁾ Langsiktig	1 rad @ 600 ctrs	2 rader @ 600 ctrs	3 rader @ 600 ctrs	SCL⁽²⁾ Long Term	1 rad @ 600 ctrs	2 rad @ 600 ctrs	3 rader @ 600 ctrs
SDW22300-R50E	980	3.3	6.5	9.8	2900	9.7	19.3	29
SDW22338-R50E	1110	3.7	7.4	11.1	3110	10.4	20.7	31.1
SDW22500-R50E	1220	4.1	8.1	12.2	3810	12.7	25.4	38.1
SDW22634-R50E	1220	4.1	8.1	12.2	3810	12.7	25.4	38.1

1. Uniformly Distributed Load

2. Structural Composite Lumber

3. The load is uniformly distributed from hangers at regilar centres up to 600mm maximum

4. To calculate the maximum allowable end reaction for each hanger - multiply the UDL by the spacing e.g. 3.51x 0.6 = 2.1kN per hanger

5. To calculate the maximum span of trimmed joists use: 2 x UDL (from above table) / Floor Load (kN/m²) e.g. 2 x 3.51 / 3.12kN

Tilkoblingsdetaljer for en Multiply Trimmer (UDL) – 3-lags

Art. nr.	Screw SWL [N]	Sikker arbeidsbelastning Maksimal UDL⁽¹⁾ [kN/m]			Skruekarakteristisk belastning [N]	Characteristic Loads Maximum UDL ⁽¹⁾
Art. nr.	SCL⁽²⁾ Long Term	1 Row @ 600ctrs	2 Row @ 600ctrs	3 Row @ 600ctrs	SCL⁽²⁾ Long Term [N]	1 Row @ 600ctrs	2 Row @ 600ctrs	3 Row @ 600ctrs
SDW22438-R50E	1090	2.7	5.5	8.2	2950	7.4	14.8	22.1
SDW22500-R50E	1120	2.8	5.6	8.4	3070	7.7	15.4	23

1. Uniformly Distributed Load

2. Structural Composite Lumber

3. The load is uniformly distributed from hangers at regilar centres up to 600mm maximum

4. To calculate the maximum allowable end reaction for each hanger - multiply the UDL by the spacing e.g. 3.51x 0.6 = 2.1kN per hanger

5. To calculate the maximum span of trimmed joists use: 2 x UDL (from above table) / Floor Load (kN/m2) e.g. 2 x 3.51 / 3.12kN

Tilkoblingsdetaljer for en Multiply Trimmer (UDL) – 4-lags

Art. nr.	Screw SWL	Safe Working Loads Maximum UDL⁽¹⁾ [kN/m]			Screw Characteristic Load [N]	Characteristic Loads Maximum UDL ⁽¹⁾
Art. nr.	SCL⁽²⁾ Long Term	1 Row @ 600ctrs	2 Row @ 600ctrs	3 Row @ 600ctrs	SCL⁽²⁾ Long Term	1 Row @ 600ctrs	2 Row @ 600ctrs	3 Row @ 600ctrs
SDW22600-R50E	1130	2.5	5	7.5	3115	6.9	13.8	20.8
SDW22634-R50E	1120	2.5	5	7.5	3070	6.8	13.6	20.5

1. Uniformly Distributed Load

2. Structural Composite Lumber

3. The load is uniformly distributed from hangers at regilar centres up to 600mm maximum

4. To calculate the maximum allowable end reaction for each hanger - multiply the UDL by the spacing e.g. 3.51x 0.6 = 2.1kN per hanger

5. To calculate the maximum span of trimmed joists use: 2 x UDL (from above table) / Floor Load (kN/m2) e.g. 2 x 3.51 / 3.12kN

Lastoverføring – 2-lags

Art. nr.	Maksimal sikker arbeidsbelastning [kN]		Maksimal karakteristisk belastning [kN]
Art. nr.	4 stk. Skruer	6 stk. Skruer	4 No. Screws	6 No. Screws
SDW22300-R50E	7.8	11.8	23.2	34.8
SDW22338-R50E	8.9	13.3	24.9	37.3
SDW22500-R50E	9.8	14.6	30.5	45.7
SDW22634-R50E	9.8	14.6	30.5	45.7

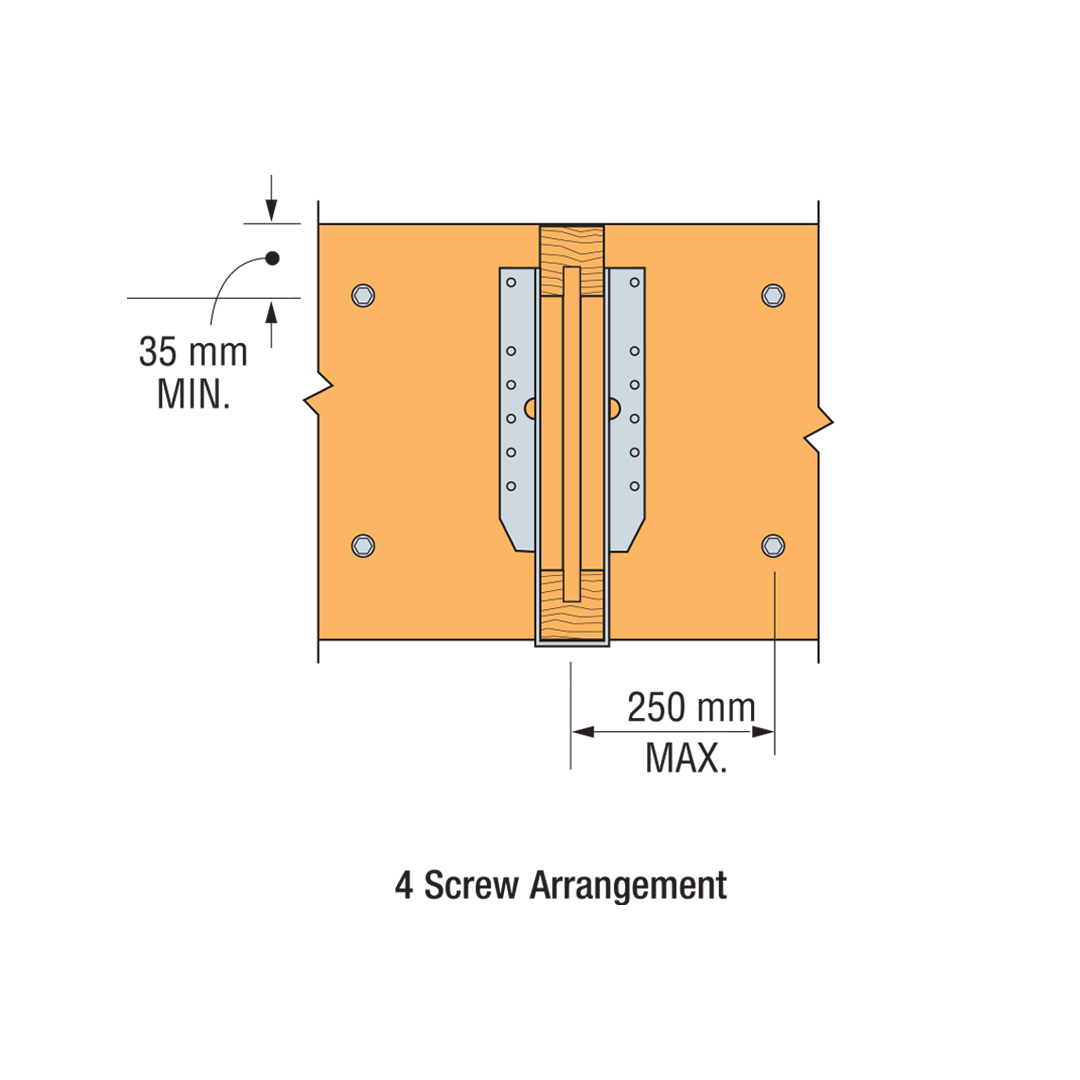

For 4 & 6 screw arrangement images, see installation tab below

Lastoverføring – 3-lags

Art. nr.	Maximum Safe Working Load [kN]		Maksimal karakteristisk kapasitet [kN]
Art. nr.	4 No. Screws	6 No. Screws	4 No. Screws	6 No. Screws
SDW22438-R50E	6.5	9.8	17.7	26.6
SDW22500-R50E	6.7	10.1	18.4	27.6

For 4 & 6 screw arrangement images, see installation tab below

Lastoverføring – 4-lags

Art. nr.	Maximum Safe Working Load [kN]		Maximum Characteristic Load [kN]
Art. nr.	4 No. Screws	6 No. Screws	4 No. Screws	6 No. Screws
SDW22600-R50E	6	9	16.6	24.92
SDW22634-R50E	6	9	16.4	24.56

For 4 & 6 screw arrangement images, see installation tab below

Montering

Monteringsveiledning

SDW skruer monteres bedst med langsomme omdrejninger og en T40 bit (Bit er inkluderet i hver kasse)
Forboring er ikke nødvendig. SDW skruen kan monteres gennem stålspær iht. spærleverandøren
Iskru skruen, således hovedet er let undersænket i træet, for at sikre de korrekte værdier
Indbyrdes afstande mellem skruerne kan justeres op til 75 mm

Stud Wall Assembly

Truss Assembly

Frame Reinforcement

Abacus

Treverk til treverk karakteristiske kapasiteter

Art. nr.	Produktkarakteristiske egenskaper – Tre til tre C24
	Aksial motstand		Skjærfasthet parallelt med fiberretningen avhengig av t₁ [Rv.0.k] [kN]							Sjærfasthet vinkelrett på fiberretningen avhengig av t₁ [Rv.90.k] [kN]
	t₁ [mm]	R_ax.k [kN]	35 [mm]	40 [mm]	45 [mm]	60 [mm]	75 [mm]	80 [mm]	≥100 [mm]	35 [mm]	40 [mm]	45 [mm]	60 [mm]	75 [mm]	80 [mm]	≥100 [mm]
SDW22258-R50E	35	3.13	3.08	2.95	-	-	-	-	-	2.38	2.42	-	-	-	-	-
SDW22300-R50E	40	3.41	3.32	3.36	3.14	-	-	-	-	2.64	2.64	2.59	-	-	-	-
SDW22338-R50E	46	3.79	3.41	3.62	3.62	-	-	-	-	2.79	2.94	2.97	-	-	-	-
SDW22438-R50E	75	3.41	3.32	3.52	3.52	3.52	3.36	3.14	-	2.7	2.84	3	3.08	2.73	2.59	-
SDW22458-R50E	82	3.41	3.32	3.52	3.52	3.52	3.52	3.46	-	2.7	2.84	3	3.08	2.94	2.78	-
SDW22500-R50E	87	3.79	3.41	3.62	3.62	3.62	3.62	3.62	-	2.79	2.94	3.1	3.17	3.17	3.16	-
SDW22600-R50E	116	3.41	3.32	3.52	3.52	3.52	3.52	3.52	3.52	2.7	2.84	3	3.08	3.08	3.08	3.08
SDW22638-R50E	126	3.41	3.32	3.52	3.52	3.52	3.52	3.52	3.52	2.7	2.84	3	3.08	3.08	3.08	3.08
SDW22634-R50E	131	3.79	3.41	3.62	3.62	3.62	3.62	3.62	3.62	2.79	2.94	3.1	3.17	3.17	3.17	3.17

These capacities are valid for:

Timber element under the head with thickness ≤ t₁ disclosed in adjacent column
Screw axis between 45° and 90° from timber grain for ESCR(XXX), and 90° from timber grain for all other screws.

For tightening screws (partially threaded), t₁ dimension is the maximum thickness of the under-head timber member for which the thread is fully in the pointside timber member, for an optimum installation and tightening.

The shear capacities are given for several timber thicknesses t1 of the under-head member under the following configurations:

Load axis at 0° from both timber grains Rv.0°.k
Load axis at 90° from both timber grains Rv.90°.k

These capacities are valid for C24 timber grades or higher
The pre-drilled hypothesis for capacity and distances calculation is fulfilled.
For partial threaded screws, capacities are only given for configurations where the thread is less than 5mm in under-head timber member, in order to achieve optimum installation and tightening.
Clause (2) in 8.3.1.2 from EN1995-1-1:2004+A2:2014 about embedment length is ignored in these calculations.

Stål til tre karakteristiske kapasiteter

Art. nr.	Produktkarakteristiske egenskaper – stål til tre C24
	Axial resistance [Rax.st.k] [kN]	Skjærmotstand - Tynn plate		Skjærmotstand - Tykt stål
	Axial resistance [Rax.st.k] [kN]	R_v.0.st.k [kN]	R_v.90.st.k [kN]	R_v.0.st.k [kN]	R_v.90.st.k [kN]
SDW22258-R50E	3.13	3.45	2.94	4.55	3.93
SDW22300-R50E	3.41	3.52	3.08	4.63	4
SDW22338-R50E	3.79	3.62	3.17	4.72	4.09
SDW22438-R50E	3.41	3.52	3.08	4.63	4
SDW22458-R50E	3.41	3.52	3.08	4.63	4
SDW22500-R50E	3.79	3.62	3.17	4.72	4.09
SDW22600-R50E	3.41	3.52	3.08	4.63	4
SDW22638-R50E	3.41	3.52	3.08	4.63	4
SDW22634-R50E	3.79	3.62	3.17	4.72	4.09

Shear capacities are given for thick (t_st = d) and thin (t_st = 0,5xd) steel plates under the following configurations:

Load axis at 0° from timber grain R_v.0°.k
Load axis at 90° from timber grain R_v.90°.k

These capacities are valid for C24 timber grades or higher.
For intermediate steel thicknesses, capacities shall be calculated by linear interpolation between the limiting thin and thick plate values.
The pre-drilled hypothesis for capacity and distances calculation is fulfilled.

Ledger på stenderens karakteristiske kapasiteter

Art. nr.	Produktkarakteristiske egenskaper - Tverrbjelke på stender C24
	Minimum bredde på bolten [mm]	Minste avstand til undersiden av ledger a_4,c [mm]	Skjærkapasitet avhengig av tykkelsen på bjelken t₁ [Rv.90-0.k] [kN]
	Minimum bredde på bolten [mm]	Minste avstand til undersiden av ledger a_4,c [mm]	35 [mm]	40 [mm]	45 [mm]	60 [mm]	75 [mm]	80 [mm]	90 [mm]	≥100 [mm]
SDW22258-R50E	46	23	2.99	2.67	-	-	-	-	-	-
SDW22300-R50E	46	23	3.27	3.19	2.86	-	-	-	-	-
SDW22338-R50E	46	23	3.36	3.36	3.36	-	-	-	-	-
SDW22438-R50E	46	23	3.27	3.27	3.27	3.27	3.19	2.86	-	-
SDW22458-R50E	46	23	3.27	3.27	3.27	3.27	3.27	3.27	-	-
SDW22500-R50E	46	23	3.36	3.36	3.36	3.36	3.36	3.36	3.25	-
SDW22600-R50E	46	23	3.27	3.27	3.27	3.27	3.27	3.27	3.27	3.27
SDW22638-R50E	46	23	3.27	3.27	3.27	3.27	3.27	3.27	3.27	3.27
SDW22634-R50E	46	23	3.36	3.36	3.36	3.36	3.36	3.36	3.36	3.36
