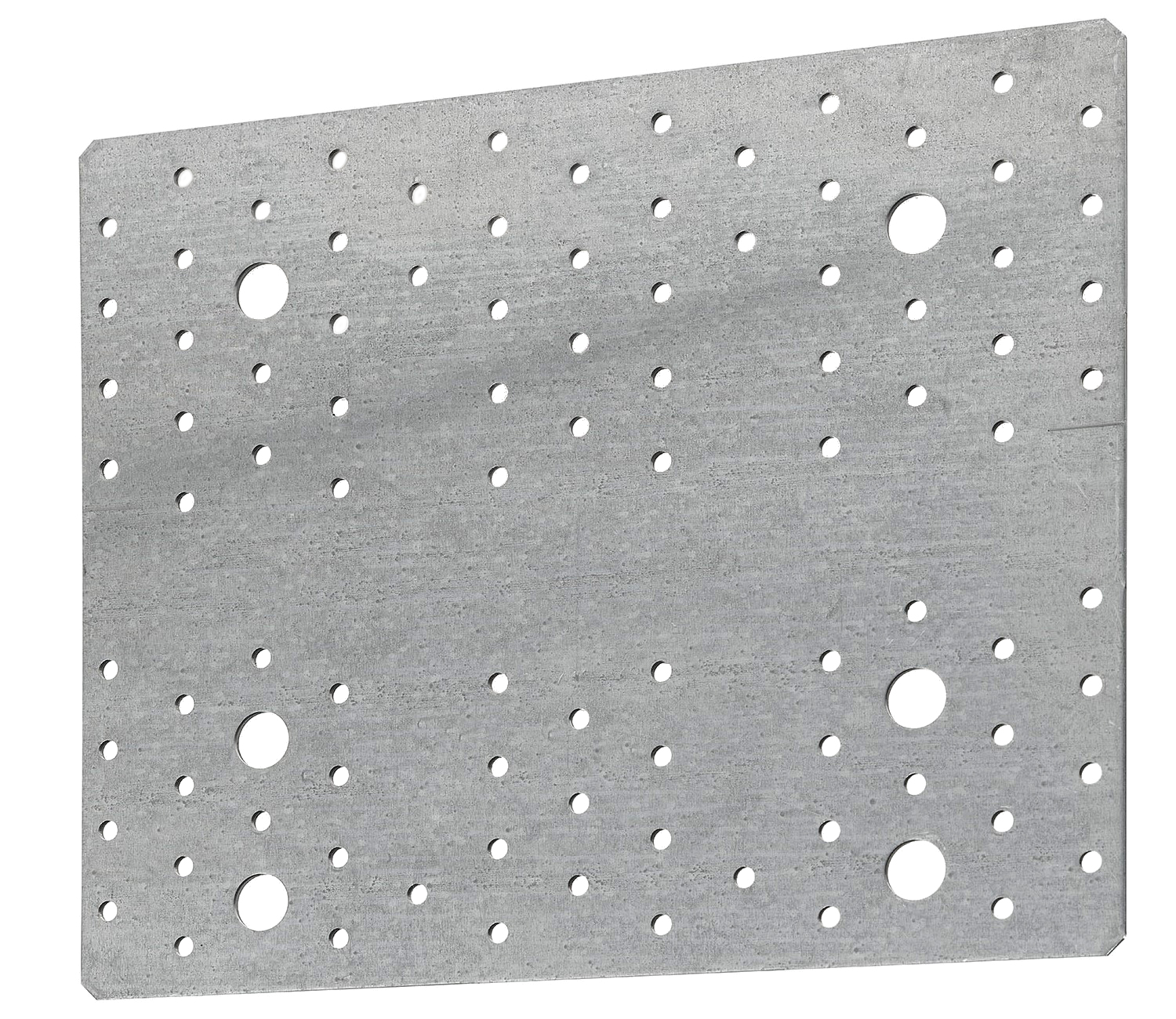

NPB255

Hullplate til CLT

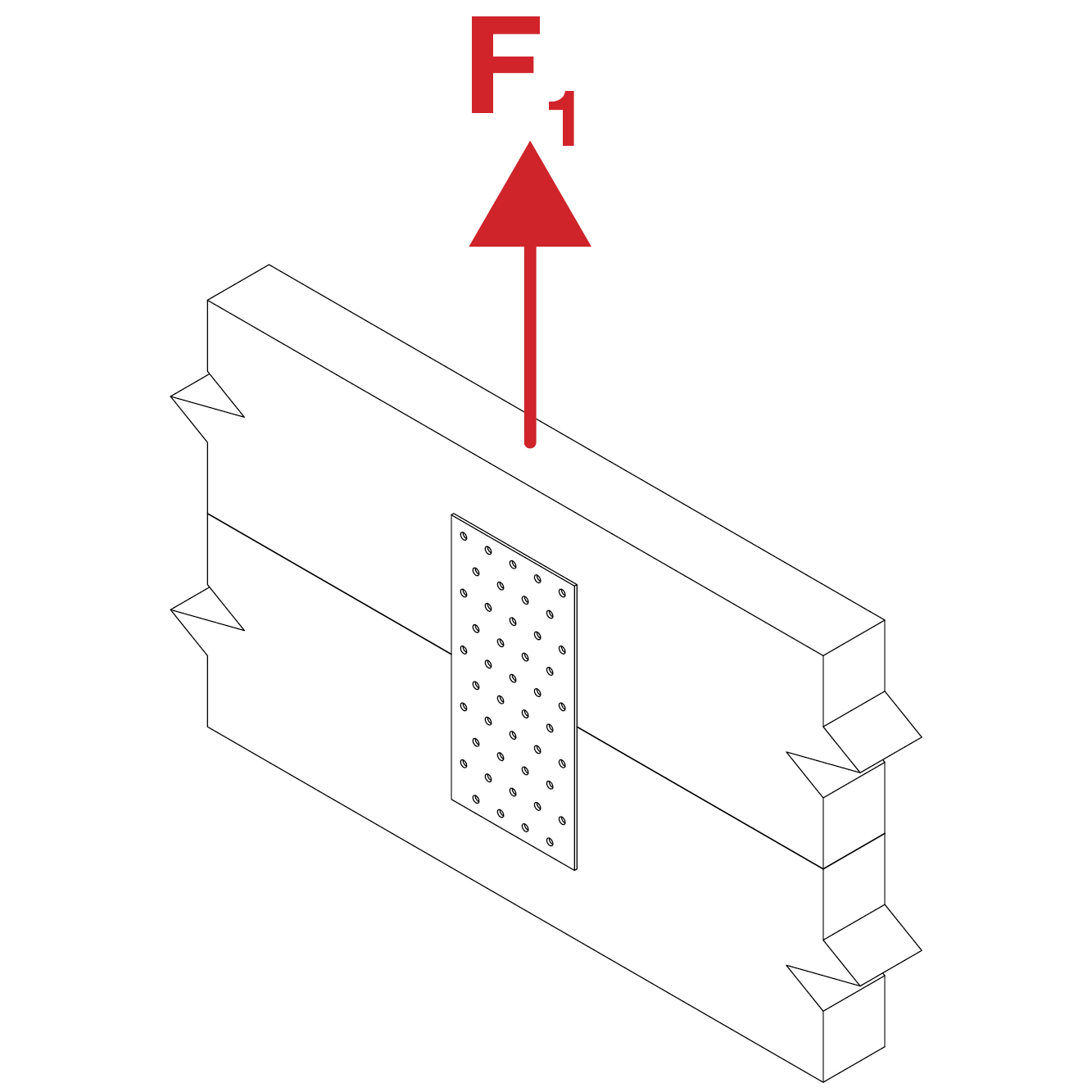

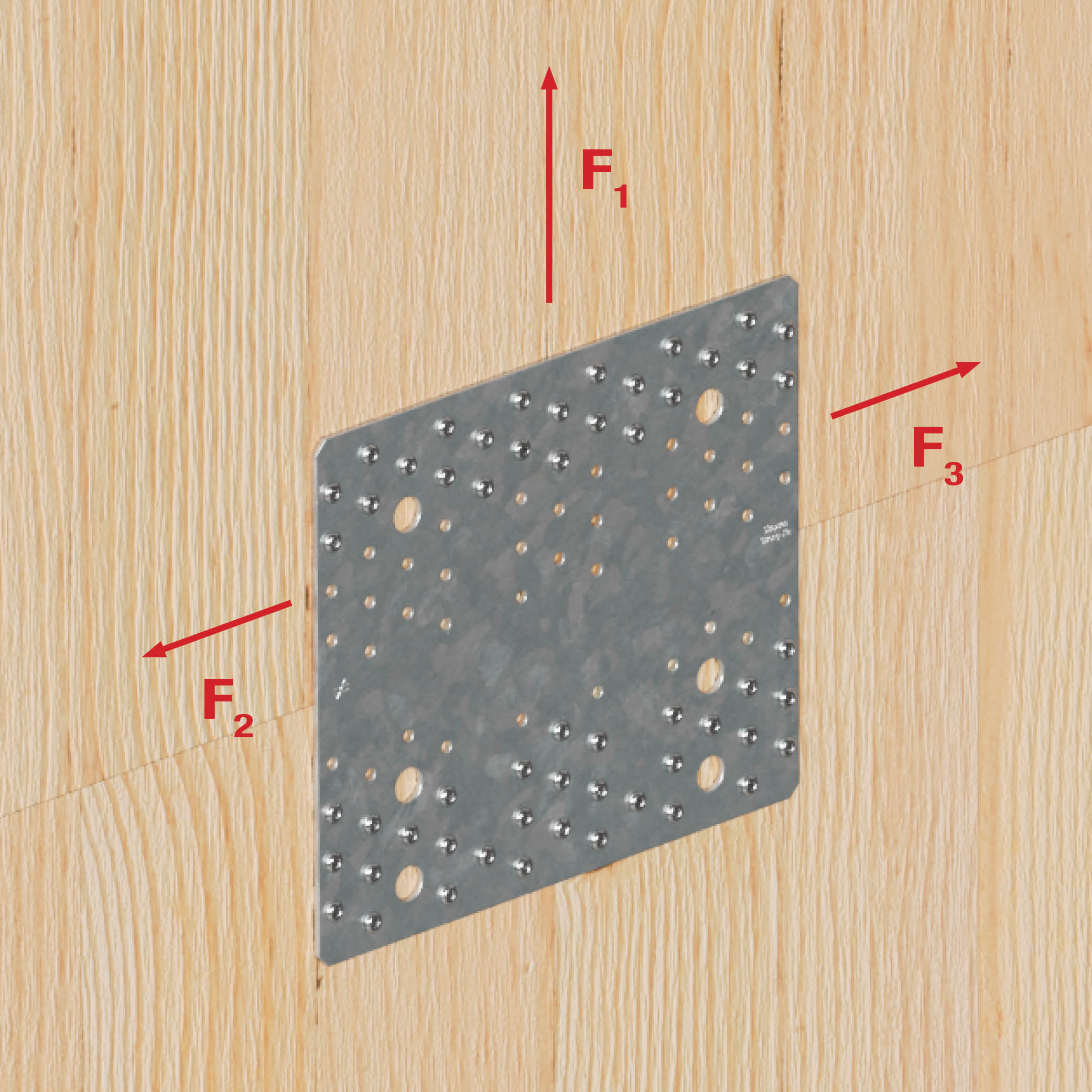

NPB er en hullplate som er spesielt utviklet for å forbinde CLT paneler til betong eller tre elementer. NPB kan oppta store laster i loddrett plan (F1) og vannrett i parallell plan (F2/3).

CE-merket
Avtalegrunnlag
Anvendelsesklasse 2
Varmgalvanisert stål 20 µm
Indoor

Produktinformasjon

Bilder

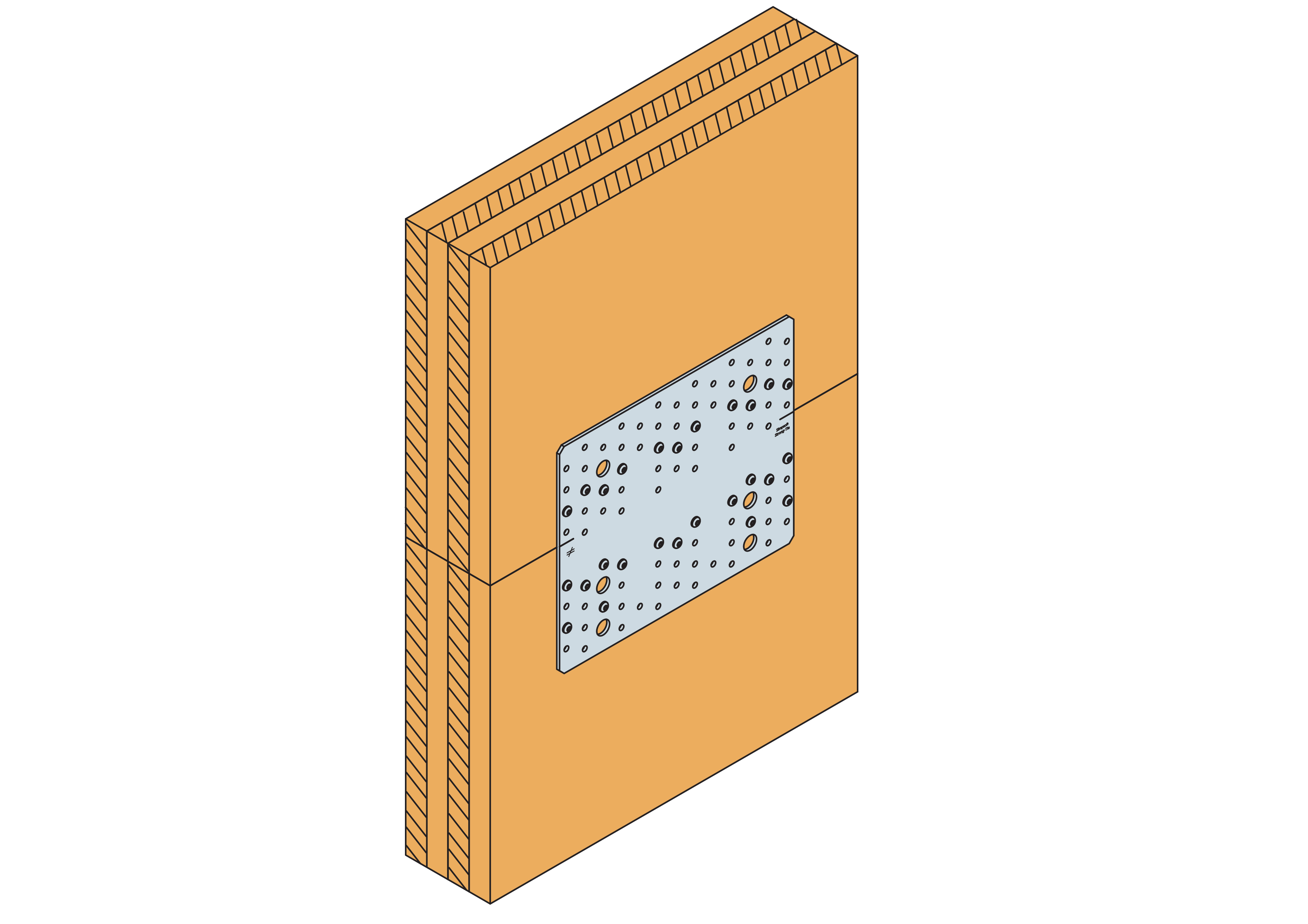

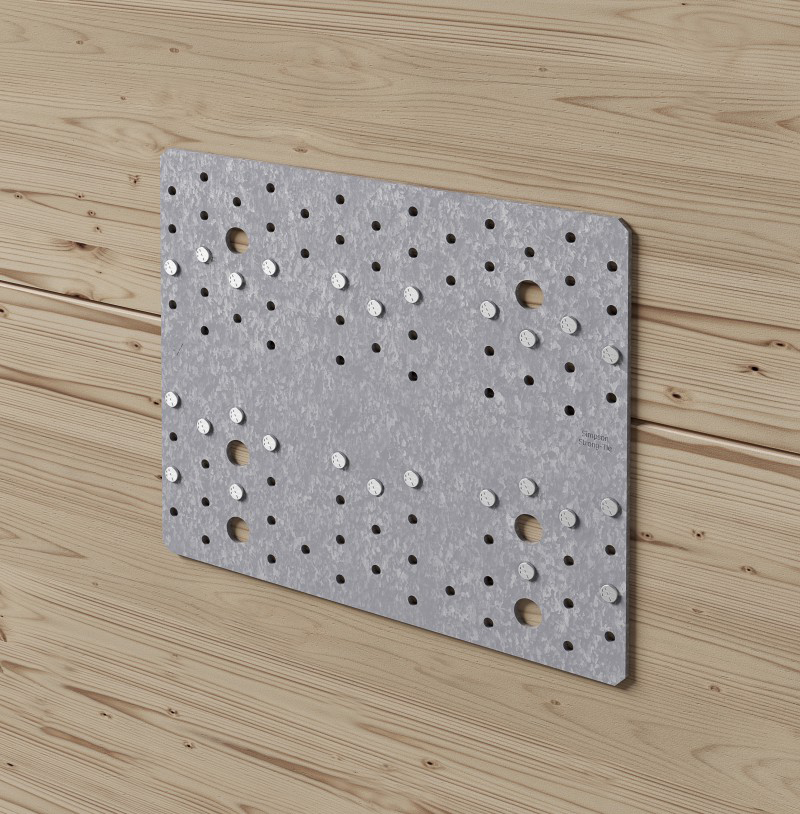

Wood to wood

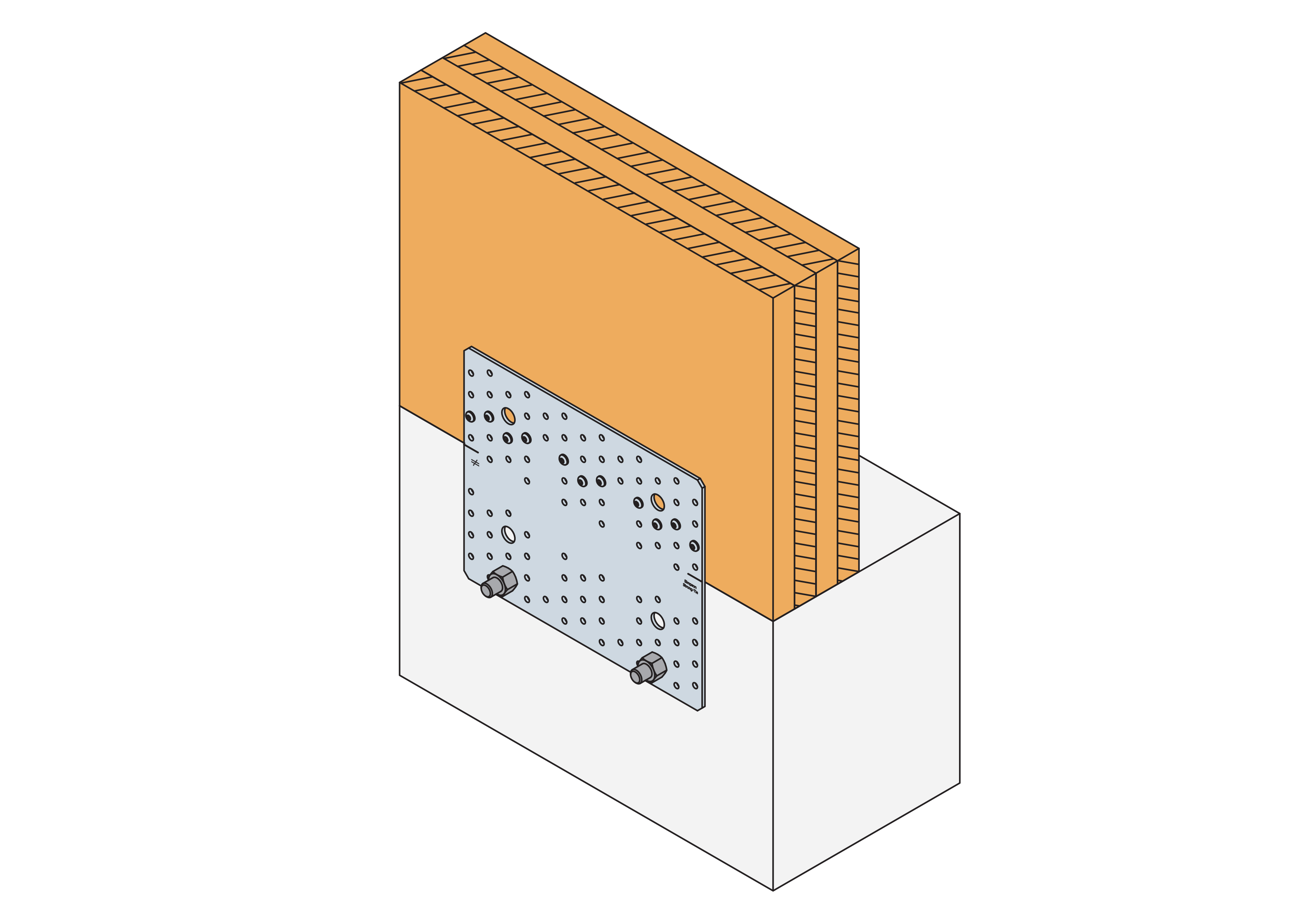

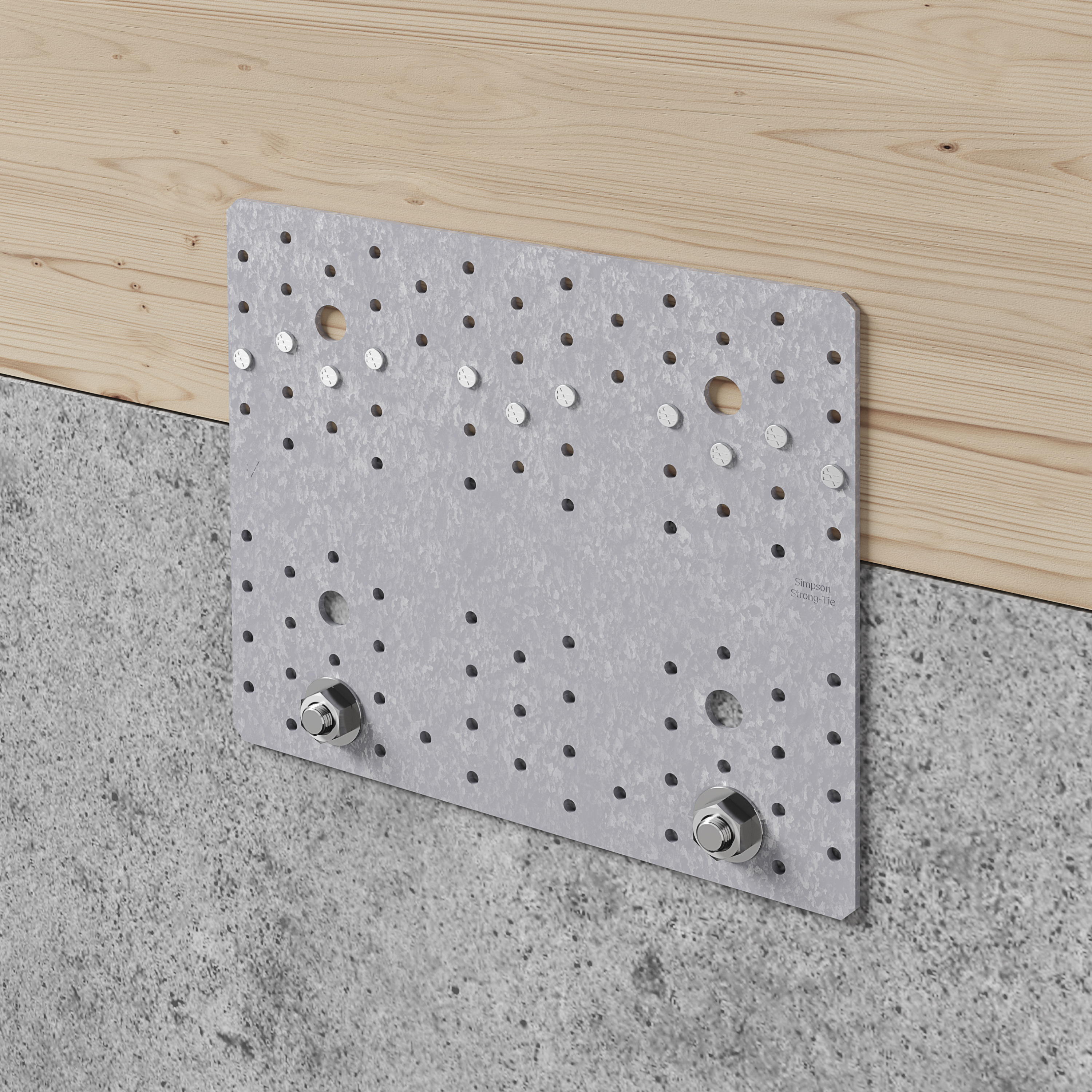

Wood to concrete

Egenskaper

Materiale

  • Stålkvalitet:
    Galvanisert stål S250GD + Z275 i henhold til EN 10346
  • Korrosjonsbeskyttelse:
    275 g/m2 på begge sider - i henhold til en sinklagstykkelse på ca. 20 μm

Fordeler

  • Ideal for CLT building
  • Easy installation with the line on it
  • Can be used on timber and concrete support
  • High capacity

Tekniske data

Dimensjoner

Dimensjoner

Art. nr. NOBB nr. Mål [mm]
A B Tykkelse (t)
NPB255540744172142553

Product characteristic capacities - Timber to timber - Nailing Pattern 1

Art. nr. Product capacities - Timber to timber - Nailing pattern 1
Utspikring Karakteristisk bæreevne [kN]
Top part Bottom part R1.k F2
CNA4.0x50 CSA5.0x50 CNA4.0x50 CSA5.0x50
NPB255111523.927.620.824

Timber member is prevented from rotation.

Please refer to installation tab for nail pattern details;

Product characteristic capacities - Timber to Rigid support - Nailing Pattern 1

Art. nr. Product capacities - Timber to timber or CLT to CLT
Utspikring Karakteristisk bæreevne [kN]
Top part Bottom part R1.k F2
CNA4.0x50 CSA5.0x50 CNA4.0x50 CSA5.0x50
NPB25511223.927.622.826.3

Timber member is prevented from rotation.

The group composed of two anchors shall be checked with shear loads F1 and F2, and a momentum applied at the middle between the two anchor equal to F2*120mm (spacing of anchors:160 mm).

Please refer to installation tab for fastener pattern details.

Montering

Montering

Innfesting

On timber:

  • CNA 4.0x50 on timber
  • CSA 5.0x40 or CSA 5.0x50 screws

On concrete:

  • Mechanical anchor: WA M12-104/5
  • CHemical anchor: AT-HP resin + LMAS M12-150/35 threaded rod

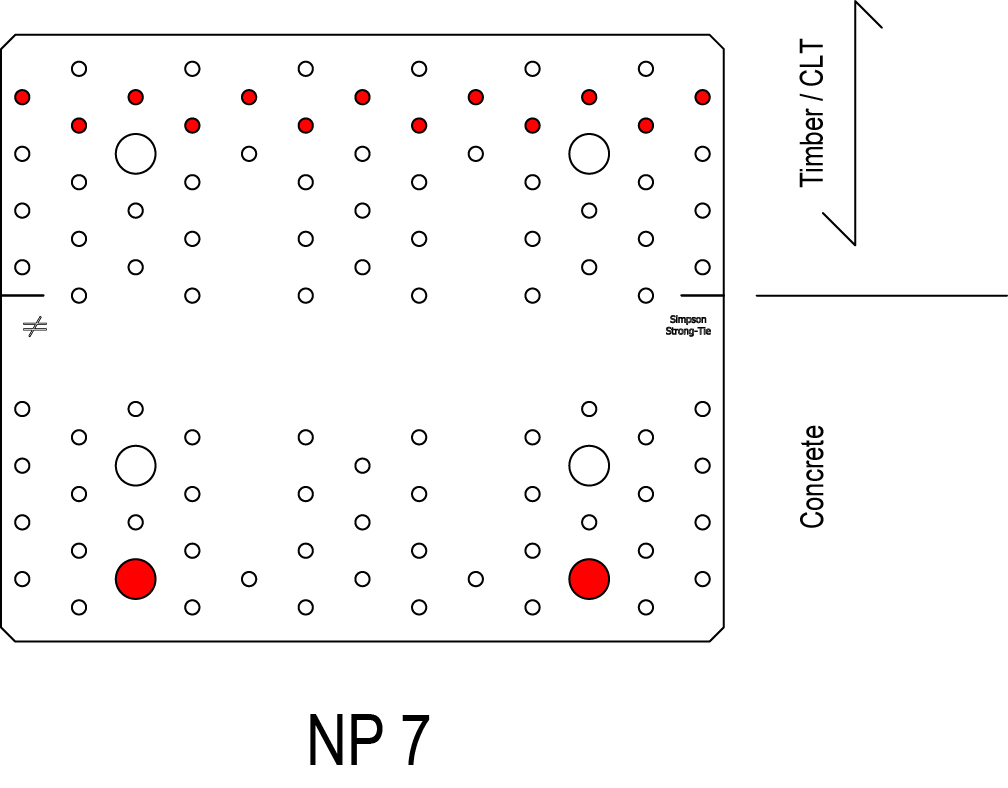

Nailing pattern

Sertifiseringer

Ytelses Erklæring (DoP)

European Technical Assessment (ETA)

eta-06-0106.pdf (13.43 MB)
