FM 753 evo

Ekspansjonsbolt

Det nye FM 735 evo anker er en heavy duty ekspansjonsbolt til medium høye laster, i str. M6 til M20 til montering i ikke-sprukket betong C20/20 - C50/60.

Teknisk dataark

CE-merket

Avtalegrunnlag

Indoor

Elgalvanisert stål

Anvendelsesklasse 2

Fix Calc

Produktinformasjon

Bilder

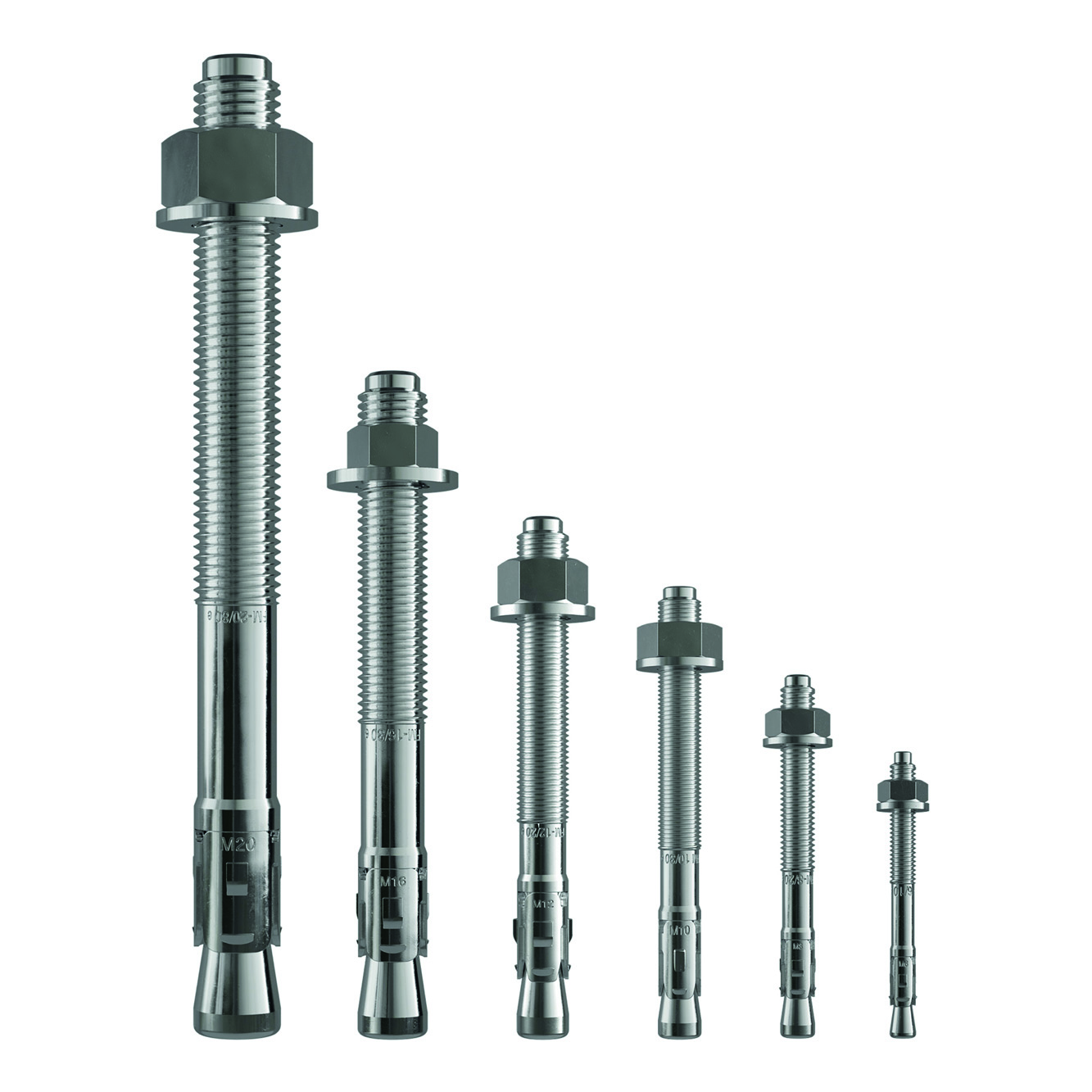

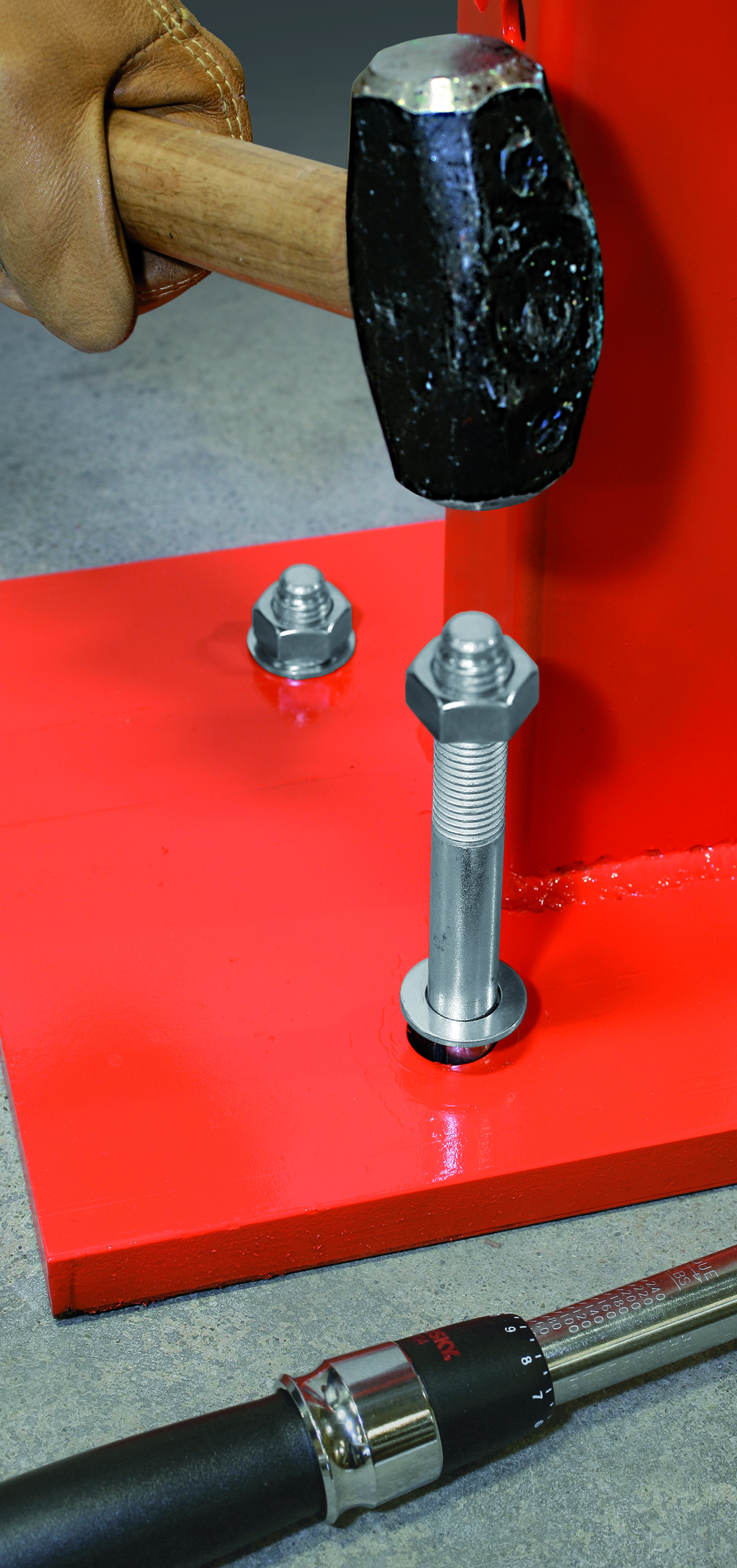

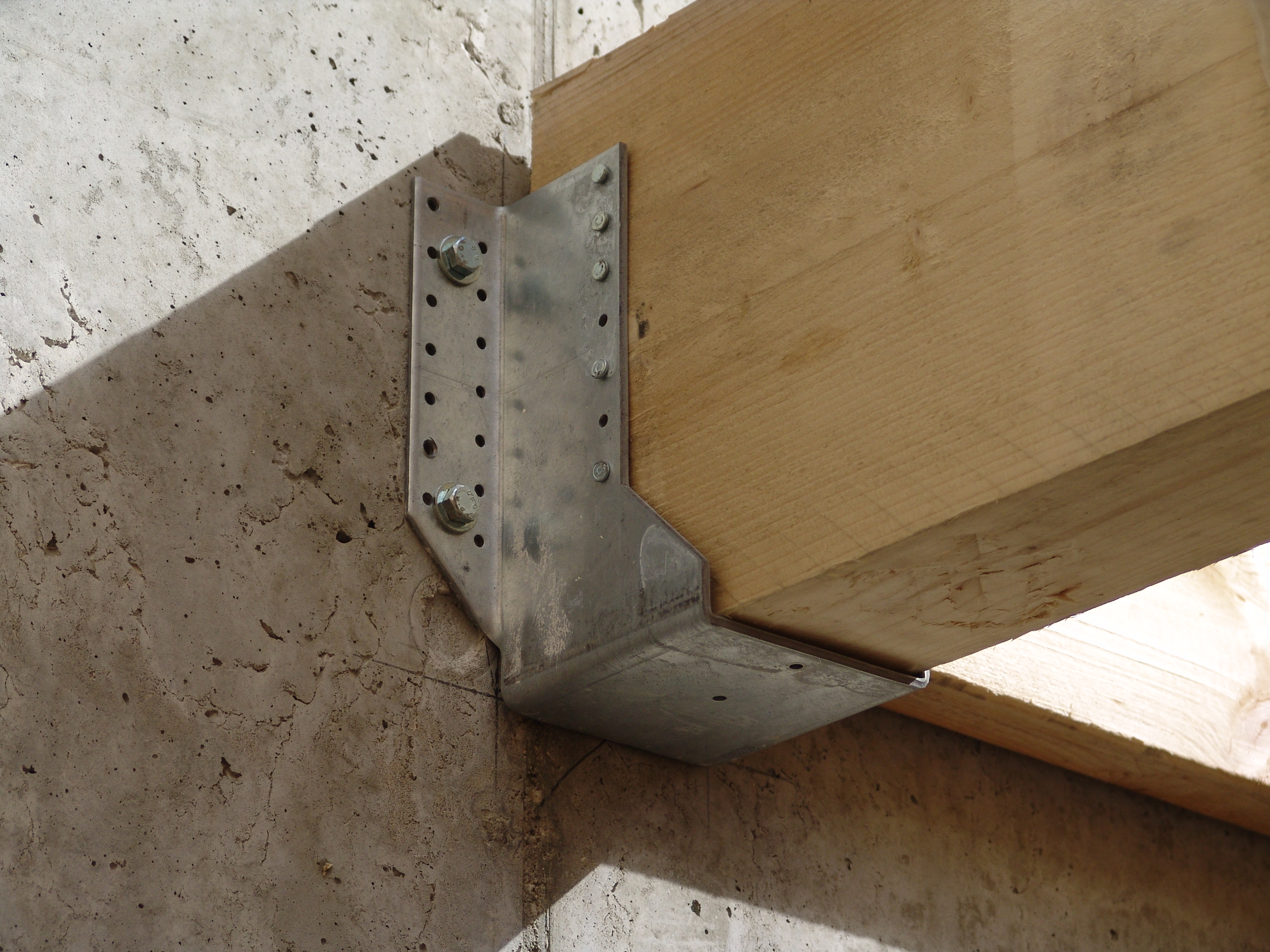

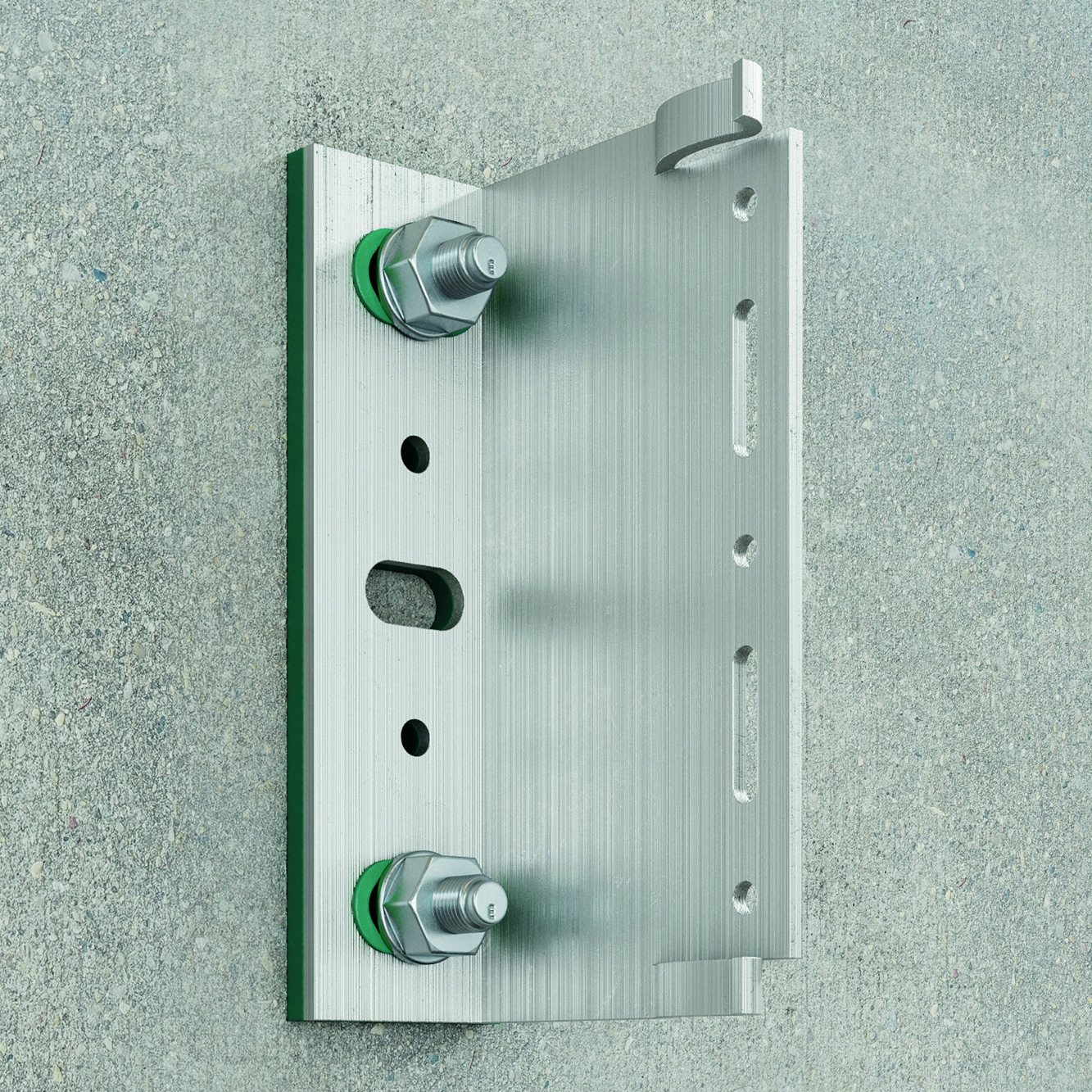

Innfesting av tre på betong

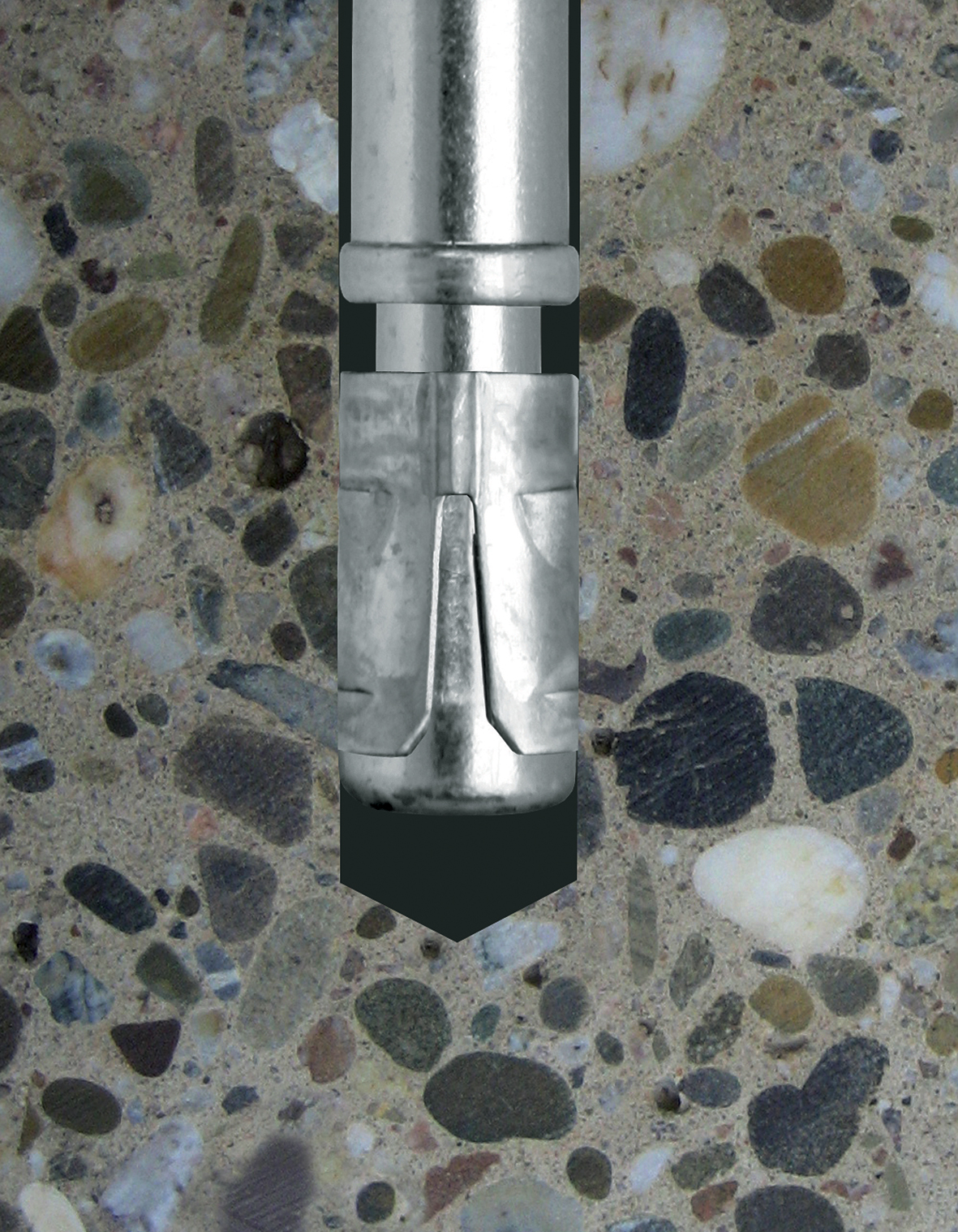

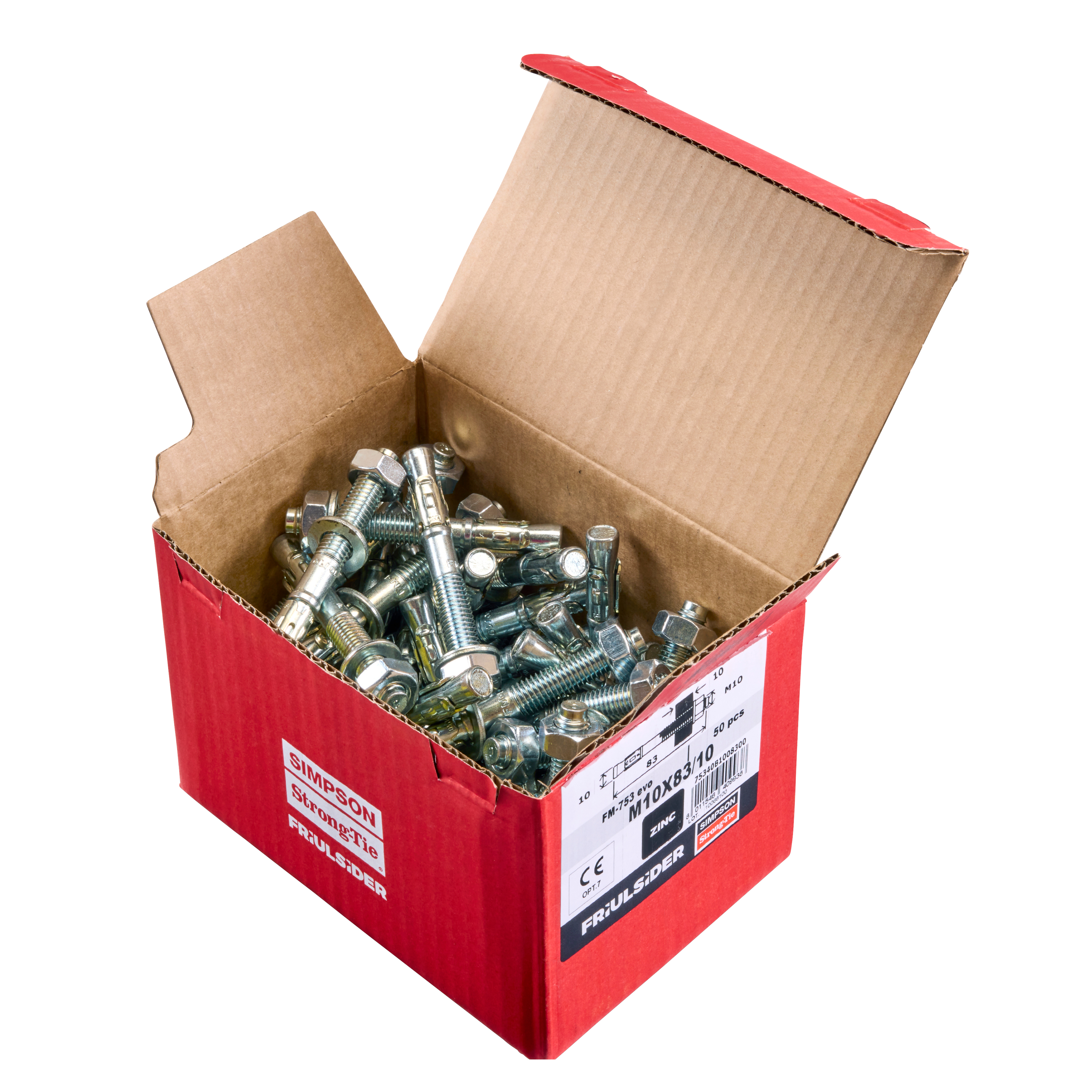

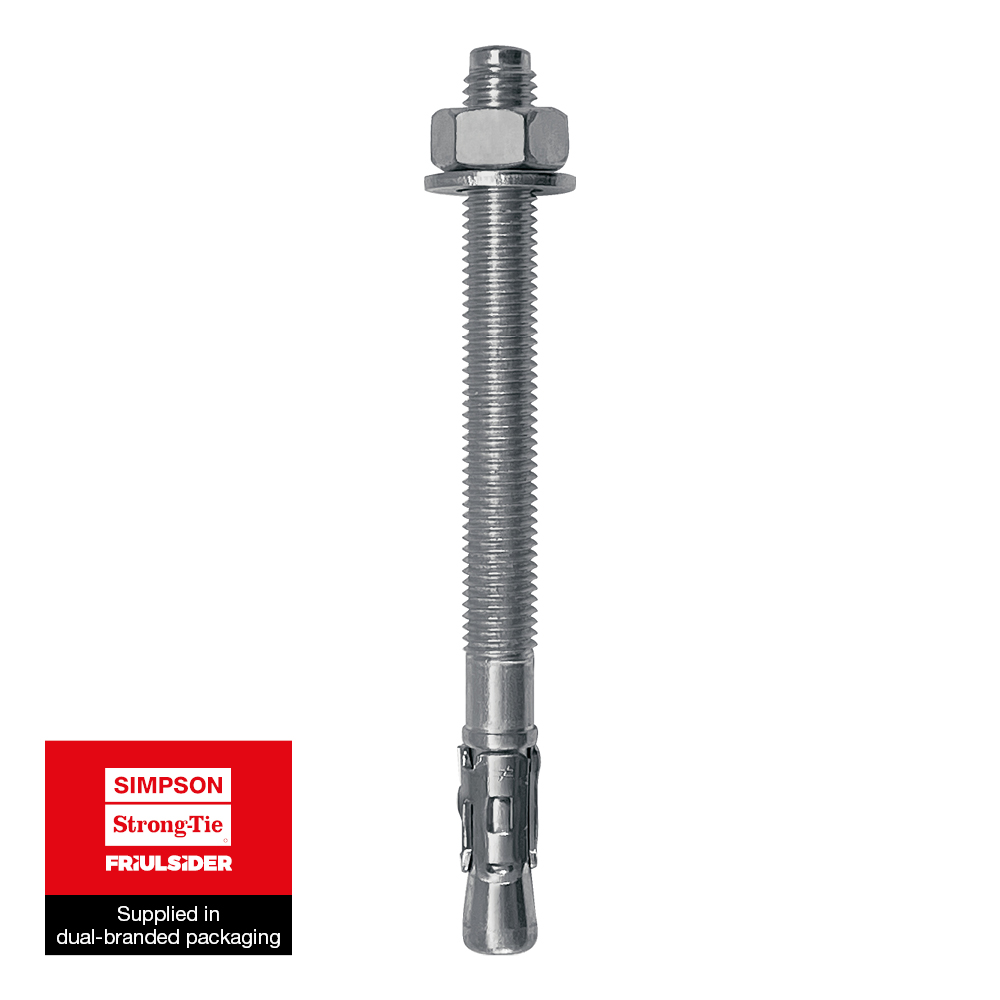

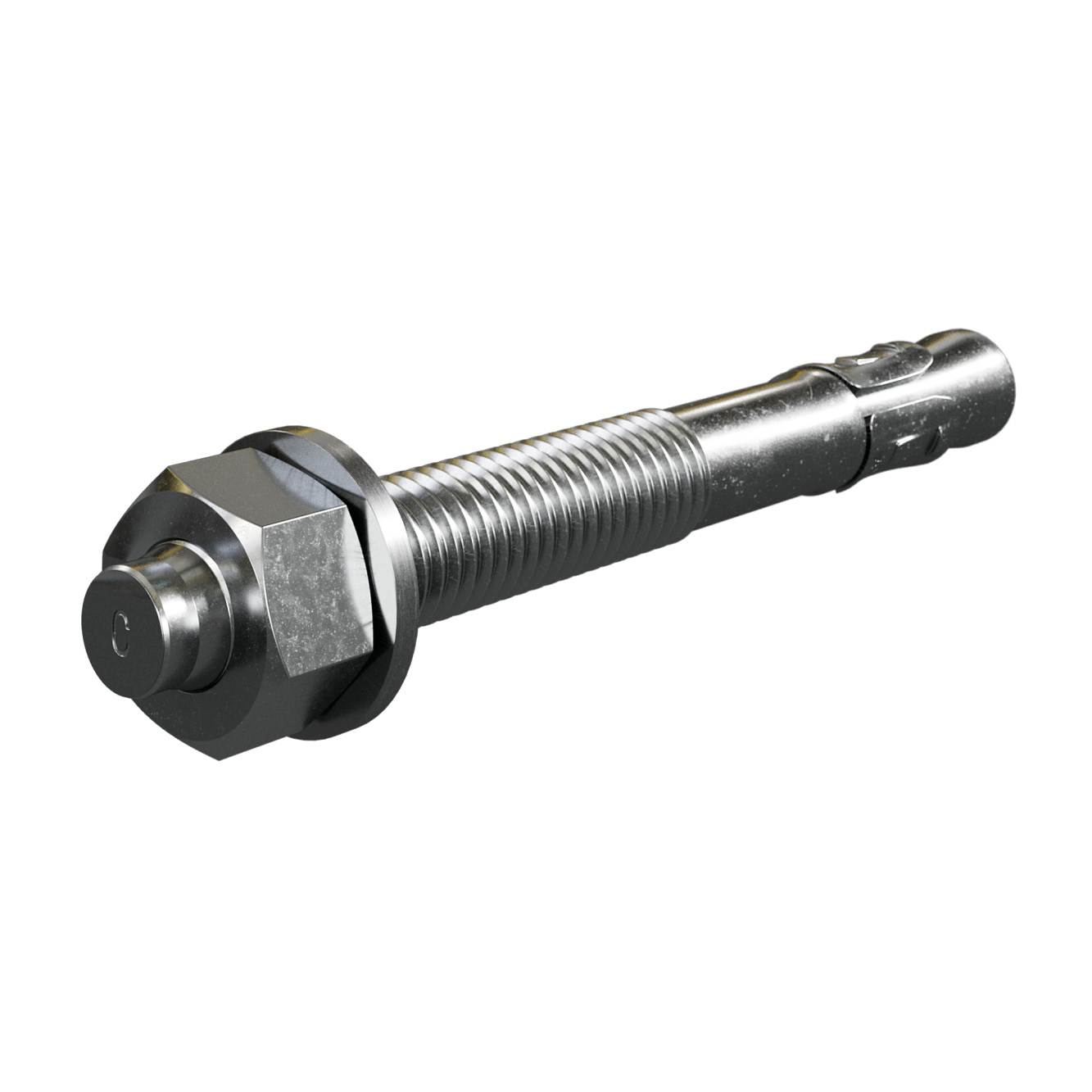

Zoom på spissen av ankeret

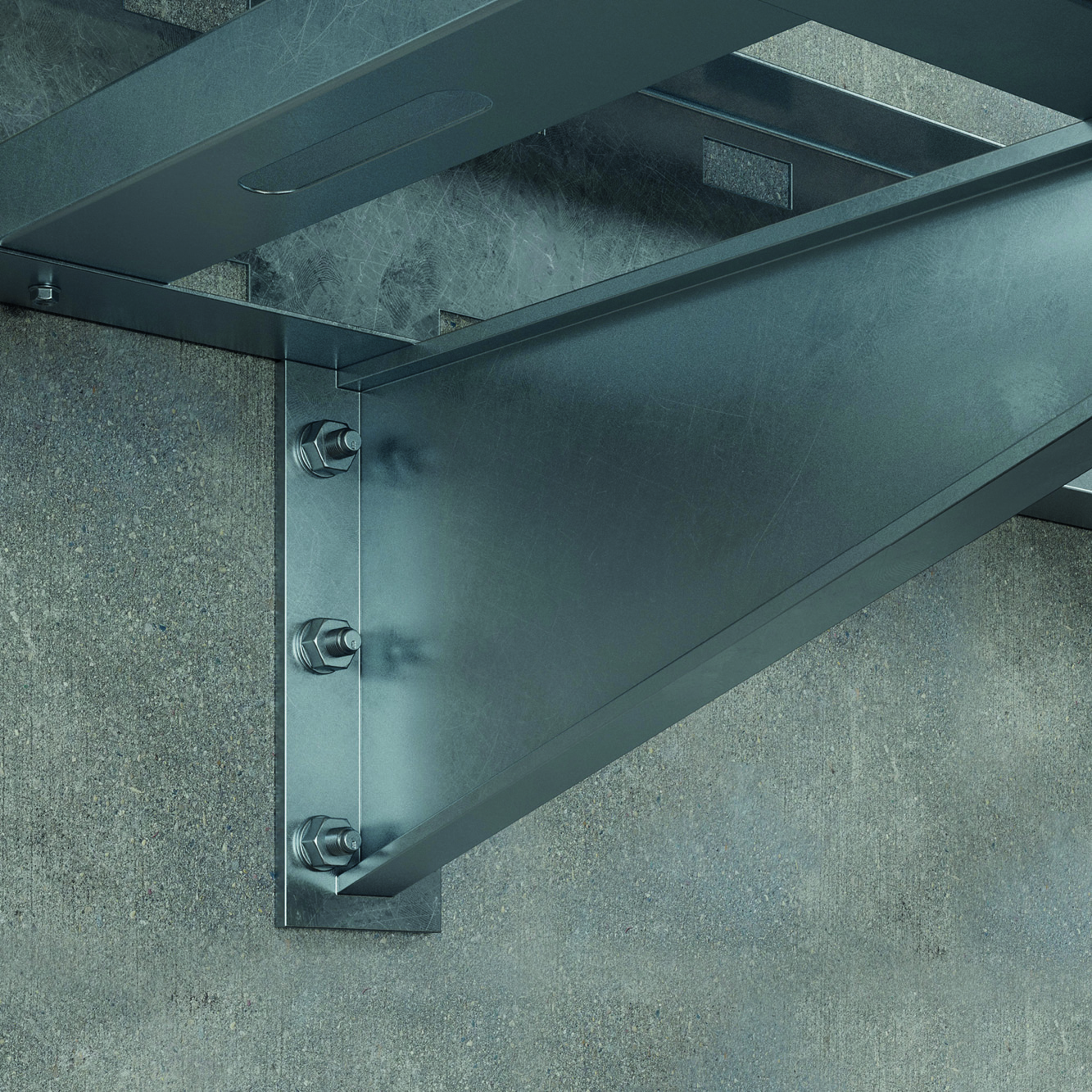

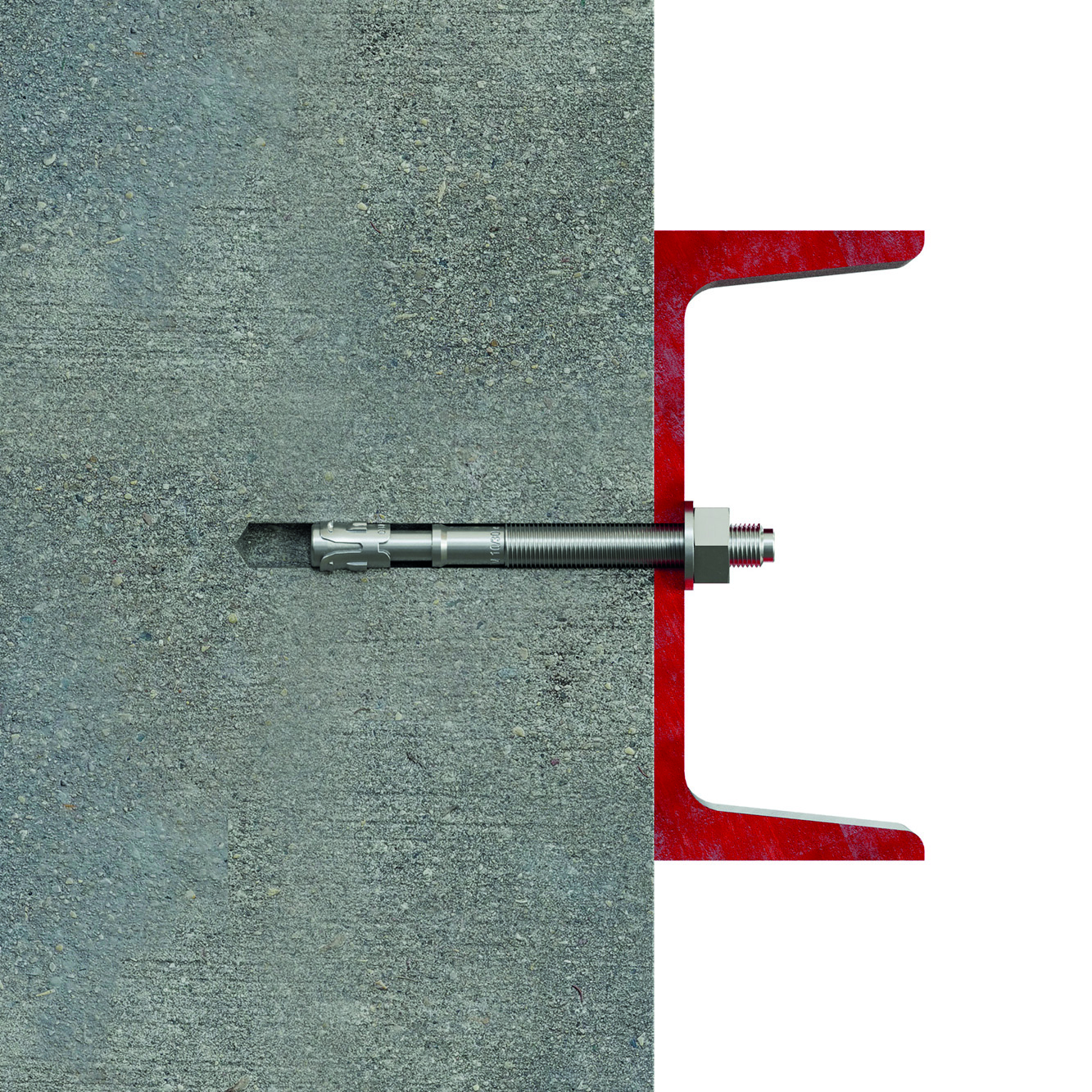

Steel frame structure anchoring

Egenskaper

Materiale

Kaldformet karbonstålhus med spesiell geometrisk klemme

Fordeler

Optimalisert geometri for høy styrke
Klips med mothaker for høy styrke og sikkerhet
Høystyrke stål for topp ytelse
Overflatebehandlet for optimal funksjon av klips/stamme
Bredt utvalg av sertifiserte ankere.

Applikasjoner

Bruksområde

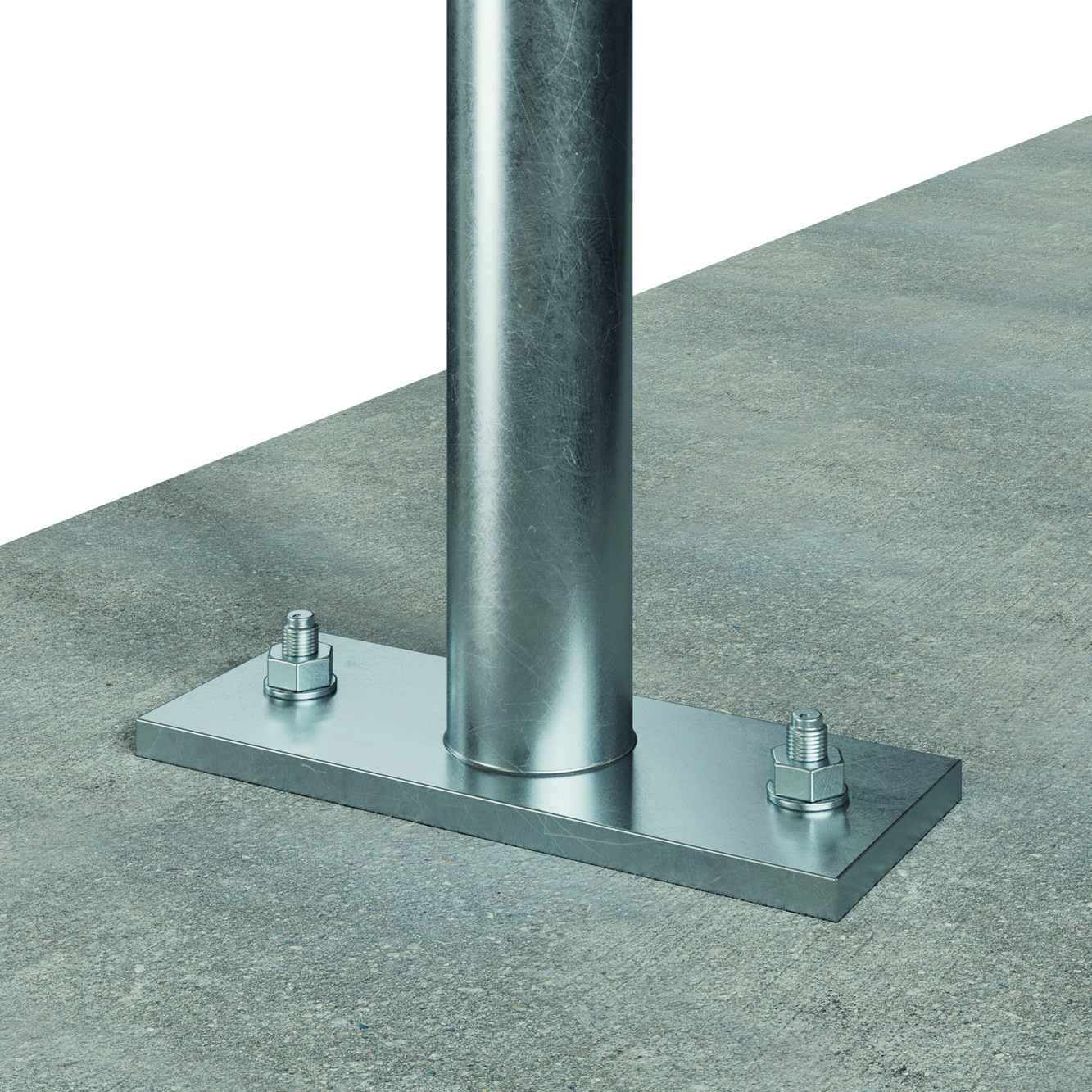

Rekkverk
Metall- og trearbeid
Fasader

Egnet for

Ikke-sprukket betong
Stein

Tekniske data

Dimensions

Referanse	Metallic fixings dimensions												Installation data
	Other							Product Reference	Mål[mm]				Installasjonsdata			Spacing and edge distances - Rebar
	NOBB nr.	Festetykkelse [tfᵢₓ,ₘₐₓ] med standard innfestedybde [hₑf,ₛₜD][mm]	Hulldiameter [dₒ][mm]	Hulldiameter i festeelement [df][mm]	Antall per pakke[stk]	Ytre boks	Vekt[kg]	Product Reference	Skruediameter x ankerlengde[mm]	ID¹)	Gjengelengde [Lv][mm]	Skiftenøkkel [SW][mm]	Minimum hulledybde [h₁][mm]	Innfestingsdybde [hₑf][mm]	Dreiemoment [Tᵢₙₛₜ][Nm]	Min. støttetykkelse [hₘᵢₙ]
75340B0604800	60743077	3	6	7	150.0	1500	0.012	FM 753 evo	M6x48/*	A	18	10	45	30	8	90
75340B0606500	60743078	10	6	7	100.0	1000	0.015	FM 753 evo	M6x65	B	30	10	55	40	8	100
75340B0811300	60743079	50	8	9	100.0	400	0.042	FM 753 evo	M8x113	G	60	13	65	45	15	100
75340B1006300	60743080	5	10	12	50.0	200	0.047	FM 753 evo	M10x63/*	A	25	17	55	35	30	90
75340B1008300	60743081	10	10	12	50.0	200	0.056	FM 753 evo	M10x83	C	40	17	70	50	30	100
75340B1010300	60743082	30	10	12	50.0	200	0.065	FM 753 evo	M10x103	E	50	17	70	50	30	100
75340B1012300	60743083	50	10	12	50.0	200	0.076	FM 753 evo	M10x123	G	60	17	70	50	30	100
75340B1208500	60743084	5	12	14	50.0	200	0.084	FM 753 evo	M12x85/*	A	40	19	75	50	50	120
75340B1210900	60743085	10	12	14	50.0	200	0.1	FM 753 evo	M12x109	C	60	19	90	65	50	130
75340B1212900	60843086	30	12	14	25.0	100	0.12	FM 753 evo	M12x129	E	70	19	90	65	50	130
75340B1214900	60743087	50	12	14	25.0	100	0.13	FM 753 evo	M12x149	G	100	19	90	65	50	130
75340B1219900	60743088	100	12	14	25.0	100	0.17	FM 753 evo	M12x199	I	110	19	90	65	50	130
75340B1611000	60743089	15	16	18	20.0	80	0.19	FM 753 evo	M16x110/*	A	50	24	89	59	100	140
75340B1615100	60743090	30	16	18	20.0	80	0.24	FM 753 evo	M16x151	C	80	24	110	80	100	160
75340B1617100	60743091	50	16	18	15.0	60	0.27	FM 753 evo	M16x171	D	80	24	110	80	100	160
75340B1622100	60743092	100	16	18	15.0	60	0.34	FM 753 evo	M16x221	F	100	24	110	80	100	160

^*Anchors with reduced embedment depths
^** Not covered by CE certification

¹⁾Ident. mark, product length

Design capacities - single anchor - no edge distances

Referanse	Metallic fixings dimensions	Metallic fixings loads
	Mål[mm]	Designkapasitet – ikke-sprukket betong (3)[kN]								Design capacity - Cracked concrete
	Skruediameter x ankerlengde[mm]	Spenning - NRd (1)				Skjær - VRd (1-2)[kN]				Bøyemoment MRd[Nm]
	Skruediameter x ankerlengde[mm]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	Bøyemoment MRd[Nm]
75340B0604800	M6x48/*	4	4	4	4.1	5.1	5.1	5.1	5.1	7.3
75340B0606500	M6x65	4	4	4	4.1	5.1	5.1	5.1	5.1	7.3
75340B0811300	M8x113	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B1006300	M10x63/*	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1008300	M10x83	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1010300	M10x103	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1012300	M10x123	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1208500	M12x85/*	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1210900	M12x109	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1212900	M12x129	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1214900	M12x149	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1219900	M12x199	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1611000	M16x110/*	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1615100	M16x151	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1617100	M16x171	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1622100	M16x221	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3

1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

Anbefalte kapasiteter – enkeltanker – ingen kantavstander

Referanse	Metallic fixings dimensions	Metallic fixings loads
	Mål[mm]	Anbefalt kapasitet								Designkapasitet – ikke-sprukket betong (3)[kN]
	Skruediameter x ankerlengde[mm]	Spenning - Nᵣₑc[kN]				Skjær - Vᵣₑc (¹-²)[kN]				Bøyemoment MRd[Nm]
	Skruediameter x ankerlengde[mm]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	Bøyemoment MRd[Nm]
75340B0604800	M6x48/*	2.2	2.9	2.9	2.9	2.9	3.6	3.6	3.6	3.6
75340B0606500	M6x65	2.2	2.9	2.9	2.9	2.9	3.6	3.6	3.6	3.6
75340B0811300	M8x113	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B1006300	M10x63/*	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1008300	M10x83	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1010300	M10x103	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1012300	M10x123	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1208500	M12x85/*	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1210900	M12x109	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1212900	M12x129	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1214900	M12x149	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1219900	M12x199	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1611000	M16x110/*	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1615100	M16x151	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1617100	M16x171	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1622100	M16x221	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8

1. The recommended loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s) and with a partial safety factor for actions of γF=1.4. The loading figures
are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10 mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per
ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

Designkapasiteter - enkeltanker - ingen kantavstander - redusert innstøpningsdybde

Referanse	Metallic fixings dimensions	Metallic fixings loads	Installation data
	Mål[mm]	Designbelastninger - Strekk & Skjær - Nᵣd[kN]	Installasjonsdata	Avstand og kantavstand
	Skruediameter x ankerlengde[mm]	Designbelastninger - Strekk & Skjær - Nᵣd[kN]	Redusert innstøpningsdybde [hₑf,ᵣ][mm]	Karakteristisk avstand for hₑf,ᵣ(⁵)[mm]	Karakteristisk kantavstand for hₑf,ᵣ[mm]	Min. avstand for hₑf,ᵣ[mm]	Min. kantavstand for hₑf,ᵣ
75340B0604800	M6x48/*	5.2	30	90	45	30	40
75340B0606500	M6x65	5.2	30	90	45	30	40
75340B0811300	M8x113	13.4	30	90	45	40	40
75340B1006300	M10x63/*	26.6	35	105	55	50	50
75340B1008300	M10x83	26.6	35	105	55	50	50
75340B1010300	M10x103	26.6	35	105	55	50	50
75340B1012300	M10x123	26.6	35	105	55	50	50
75340B1208500	M12x85/*	46.6	50	150	75	70	70
75340B1210900	M12x109	46.6	50	150	75	70	70
75340B1212900	M12x129	46.6	50	150	75	70	70
75340B1214900	M12x149	46.6	50	150	75	70	70
75340B1219900	M12x199	46.6	50	150	75	70	70
75340B1611000	M16x110/*	110.9	59	180	90	90	90
75340B1615100	M16x151	110.9	59	180	90	90	90
75340B1617100	M16x171	110.9	59	180	90	90	90
75340B1622100	M16x221	110.9	59	180	90	90	90

Shear value valid with distance from the edge c>10 x h_ef,r

Anbefalte kapasiteter – enkeltanker – ingen kantavstander – redusert innstøpningsdybde

Referanse	Metallic fixings dimensions	Metallic fixings loads	Installation data
	Mål[mm]	spenning / skjærbelastning Rᵣₑc[kN]	Installasjonsdata	Avstand og kantavstand
	Skruediameter x ankerlengde[mm]	spenning / skjærbelastning Rᵣₑc[kN]	Redusert innstøpningsdybde [hₑf,ᵣ][mm]	Karakteristisk avstand for hₑf,ᵣ(⁵)[mm]	Karakteristisk kantavstand for hₑf,ᵣ[mm]	Min. avstand for hₑf,ᵣ[mm]	Min. kantavstand for hₑf,ᵣ
75340B0604800	M6x48/*	1.6	30	90	45	30	40
75340B0606500	M6x65	1.6	30	90	45	30	40
75340B0811300	M8x113	1.7	30	90	45	40	40
75340B1006300	M10x63/*	3.4	35	105	55	50	50
75340B1008300	M10x83	3.4	35	105	55	50	50
75340B1010300	M10x103	3.4	35	105	55	50	50
75340B1012300	M10x123	3.4	35	105	55	50	50
75340B1208500	M12x85/*	5.2	50	150	75	70	70
75340B1210900	M12x109	5.2	50	150	75	70	70
75340B1212900	M12x129	5.2	50	150	75	70	70
75340B1214900	M12x149	5.2	50	150	75	70	70
75340B1219900	M12x199	5.2	50	150	75	70	70
75340B1611000	M16x110/*	6.5	59	180	90	90	90
75340B1615100	M16x151	6.5	59	180	90	90	90
75340B1617100	M16x171	6.5	59	180	90	90	90
75340B1622100	M16x221	6.5	59	180	90	90	90

The recommended loads N,V and F derive from the mean ultimate loads and are inclusive of the total safety factor γ=4 (shear γ=3).

Shear value valid with distance from the edge c>10 x hef,r

Produktdimensjon – Gjør-det-selv

Tabellen "Produktdimensjon – Gjør-det-selv" kan ikke vises: ingen referanser tilgjengelig.

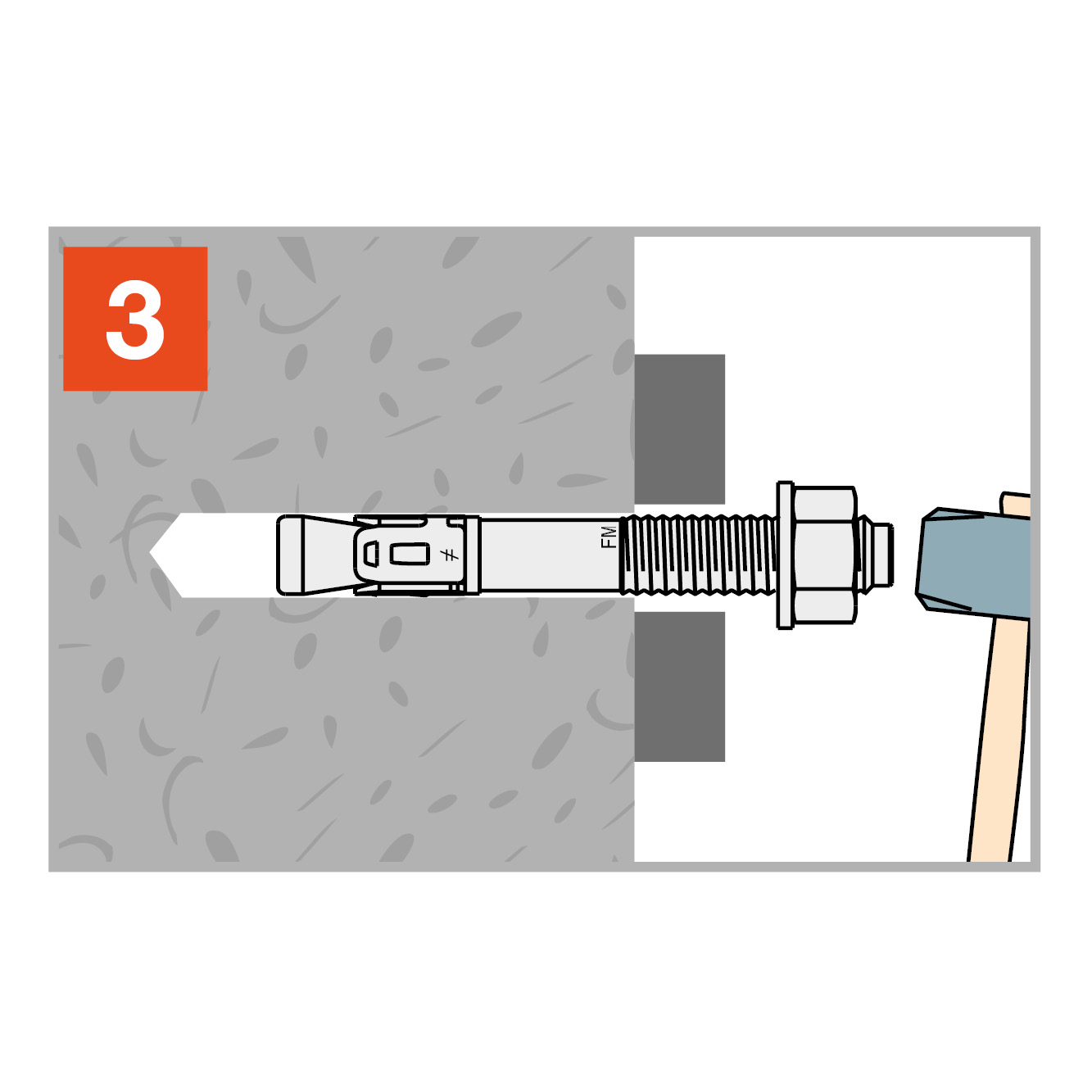

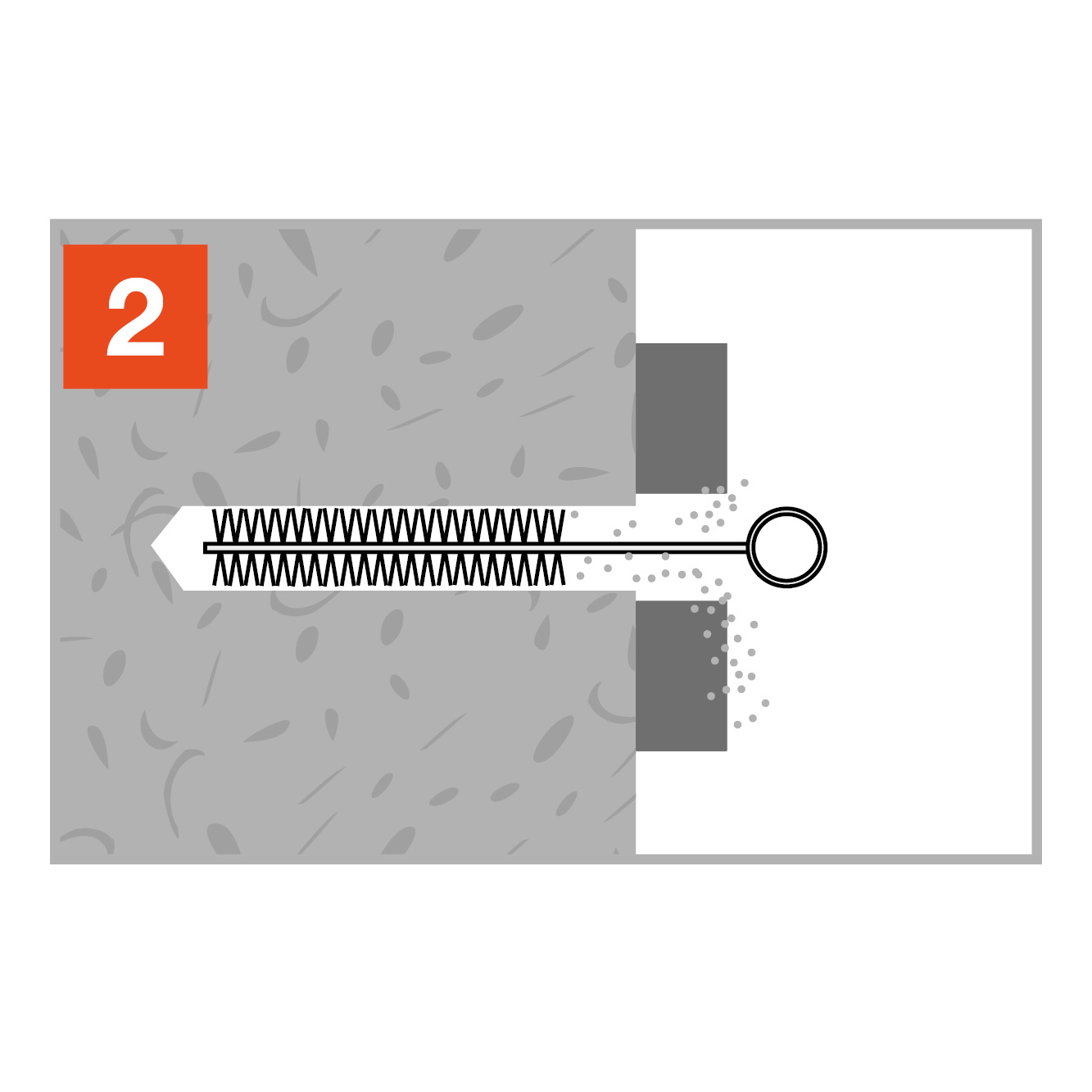

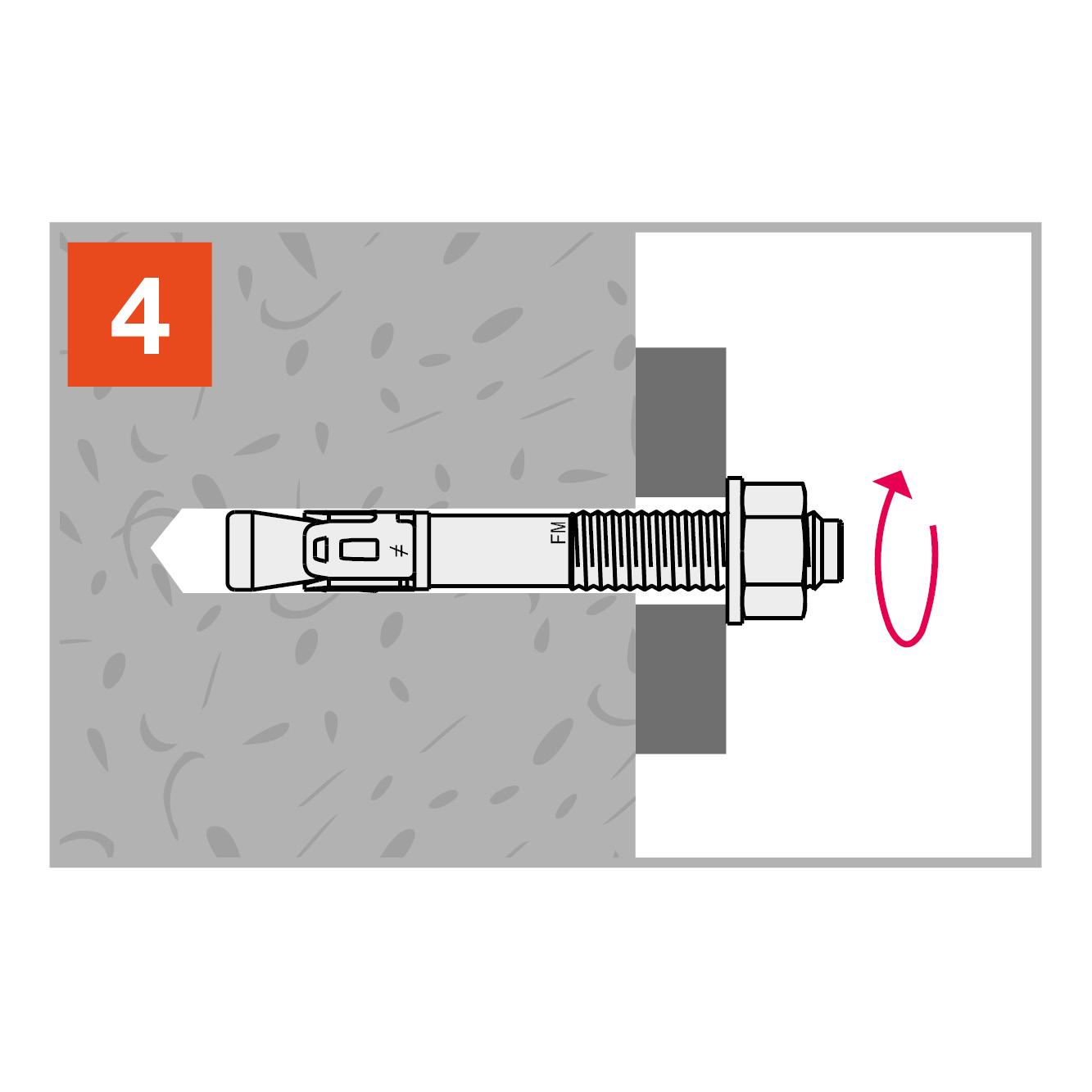

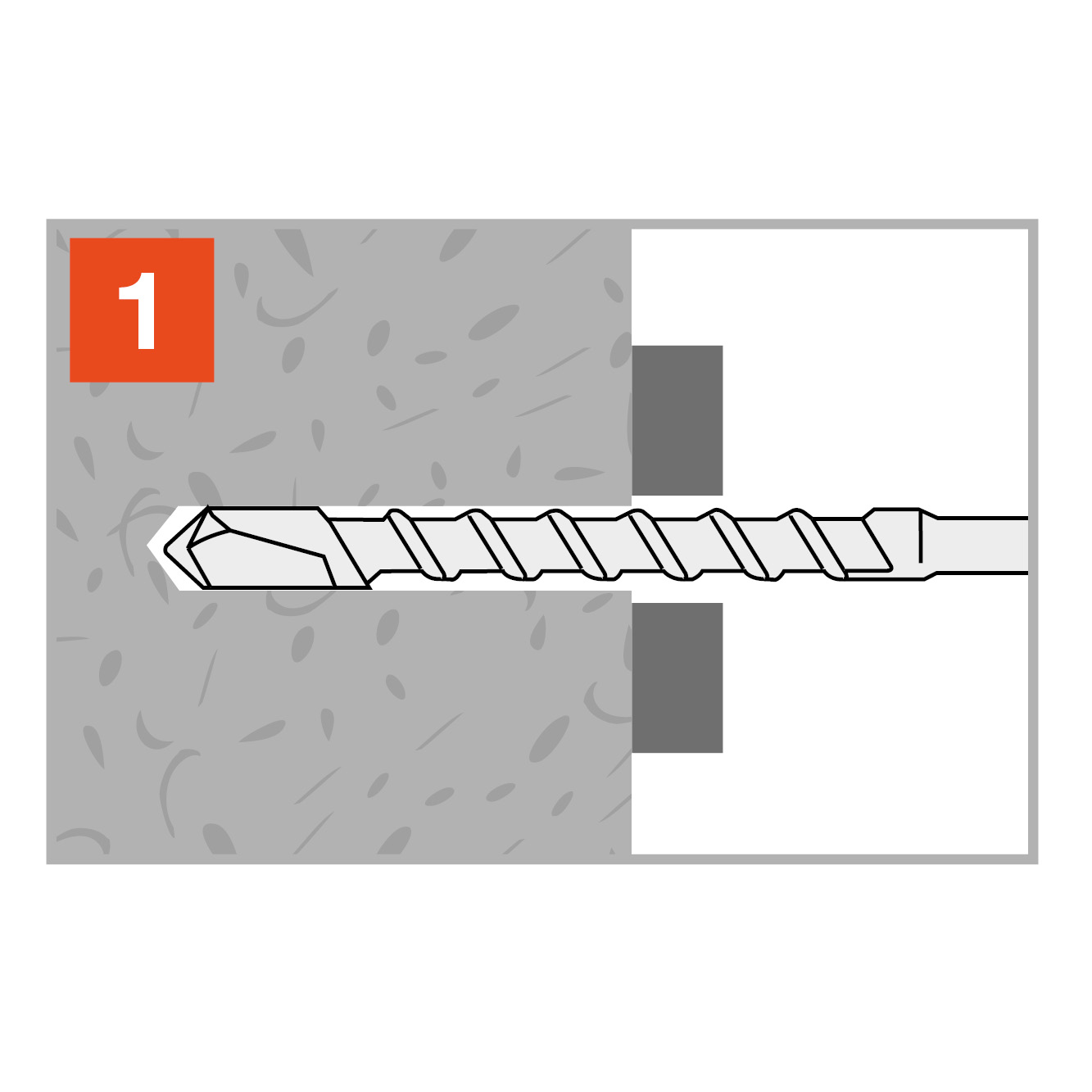

Montering

Spacing, Edge Distance and Member Thickness

Referanse	Metallic fixings dimensions				Installation data
	Mål[mm]		Other		Installasjonsdata			Spacing and edge distances - Rebar		Avstand og kantavstand
	Skruediameter x ankerlengde[mm]	Skiftenøkkel [SW][mm]	Hulldiameter [dₒ][mm]	Hulldiameter i festeelement [df][mm]	Minimum hulledybde [h₁][mm]	Dreiemoment [Tᵢₙₛₜ][Nm]	Innfestingsdybde [hₑf][mm]	Min. støttetykkelse [hₘᵢₙ]	Min. edge distance[mm]	Karakteristisk avstand (5) - Scr,N[mm]	Kantavstand[mm]	Sₘᵢₙ[mm]
75340B0604800	M6x48/*	10	6	7	45	8	30	90	40	120	60	30
75340B0606500	M6x65	10	6	7	55	8	40	100	40	120	60	30
75340B0811300	M8x113	13	8	9	65	15	45	100	40	135	68	40
75340B1006300	M10x63/*	17	10	12	55	30	35	90	50	150	75	50
75340B1008300	M10x83	17	10	12	70	30	50	100	50	150	75	50
75340B1010300	M10x103	17	10	12	70	30	50	100	50	150	75	50
75340B1012300	M10x123	17	10	12	70	30	50	100	50	150	75	50
75340B1208500	M12x85/*	19	12	14	75	50	50	120	70	195	98	70
75340B1210900	M12x109	19	12	14	90	50	65	130	70	195	98	70
75340B1212900	M12x129	19	12	14	90	50	65	130	70	195	98	70
75340B1214900	M12x149	19	12	14	90	50	65	130	70	195	98	70
75340B1219900	M12x199	19	12	14	90	50	65	130	70	195	98	70
75340B1611000	M16x110/*	24	16	18	89	100	59	140	90	240	120	90
75340B1615100	M16x151	24	16	18	110	100	80	160	90	240	120	90
75340B1617100	M16x171	24	16	18	110	100	80	160	90	240	120	90
75340B1622100	M16x221	24	16	18	110	100	80	160	90	240	120	90
